QTA270 | 199 Ft Lb Capacity Torque Reaction Arm
Overview

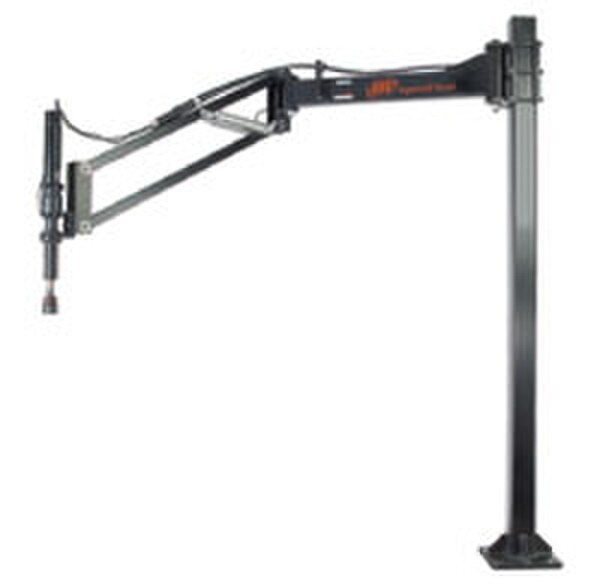

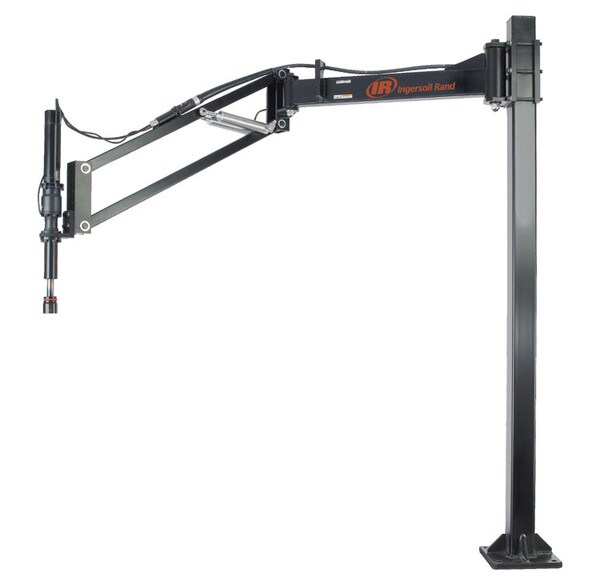

Ingersoll Rand QTA270
199 Ft Lb (270Nm) Capacity Torque Reaction Arm
We offer an impressive line of ergonomic torque reaction arms that help operators work more safely and comfortably while maximizing efficiency, to ensure product quality and minimize downtime.Â
Features:
- Spring balancer adjusts easily and offers effortless vertical movement
- Simple, proven design for trouble-free set up and dependability
- Anodized aluminum body delivers durability in a lightweight design
- Adjustable reach for ease of use and convenience
- Standard inline clamp included for models up to 100 Nm
- Select from a varitey of universal tool mounts
- (1) Year Manufacturers Warranty
Features & Benefits
- Spring balancer adjusts easily
- Anodized aluminum body delivers durability
- Effortless vertical movement
- Adjustable reach
Technical Specifications
Model
QTA270
Max Reach (in)
60
Manufacturer
Ingersoll Rand
Min Torque (Ft Lb)
0
SKU
QTA270
Stock Code
3
Weight Capacity (Lb)
22
Reach
60" (1524mm)
Travel (Ft)
1.56
Travel (mm)
477
Max Torque (Ft Lb)
199
Maximum Reach (In)
60
Min Torque (Nm)
0
Max Torque (Nm)
270
UPC
00663023100159
Weight (lbs)
85
Technical Documents
Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
