R-2000iC/210L | 6 Axis, 210 kg Multi-Role Intelligent Robot, 3100 mm reach
Overview

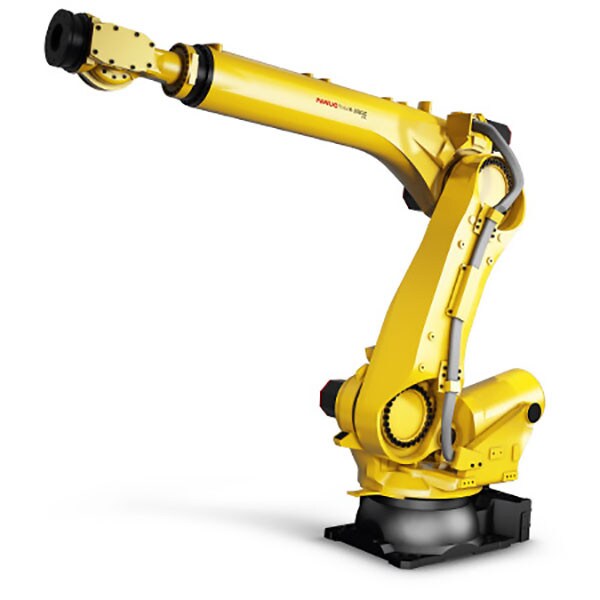

FANUC R-2000iC/210L
6 Axis, 210 kg Multi-Role Intelligent Robot, 3100 mm reach
The FANUC R-2000iC robot is a multi-purpose intelligent robot based on FANUC's years of experience and renowned technology. This high performance intelligent robot with outstanding reliability and cost performance will support your needs in a wide range of applications, such as spot welding, material handling and assembly.
- Size and weight reduction of the mechanical unit for a more lightweight and compact robot
- A lightweight, rigid arm combined with the world's most advanced motion control technology offers significantly improved motion performance, and higher productivity
- Extensive options are available for various processes, including the spot welding solution arm
- The new R-30iB robot controller provides an energy regeneration option and a compact cabinet
- Available with the most advanced intelligent features such as the learning robot, bin picking, force sensing, iRVision and visual line tracking
Features & Benefits
- Ideally suited to automotive applications such as spot welding.
- Small footprint means it easily fits into crowded factory environments.
- The robot for car manufacturing. Suited for high speed automated welding and other applications that require heavy tooling
- Combining a 3100 mm reach with a 210 kg payload capacity, this industrial robot is a great choice for tasks involving high payloads.
Technical Specifications
Application
Assembly, Pick/Pack/Palletizing, Material Removal, Spot Welding, Part Transfer, Dispensing
Model
R-2000iC/210L
Manufacturer
FANUC
SKU
R-2000iC/210L
Reach
3100 mm
Installation
Floor
No. of Axis
6
Repeatability
0.2 mm
Payload
210 kg
Weight (kg)
1350
Technical Documents
FANUC R 2000iC Series Multi Purpose Intelligent Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
