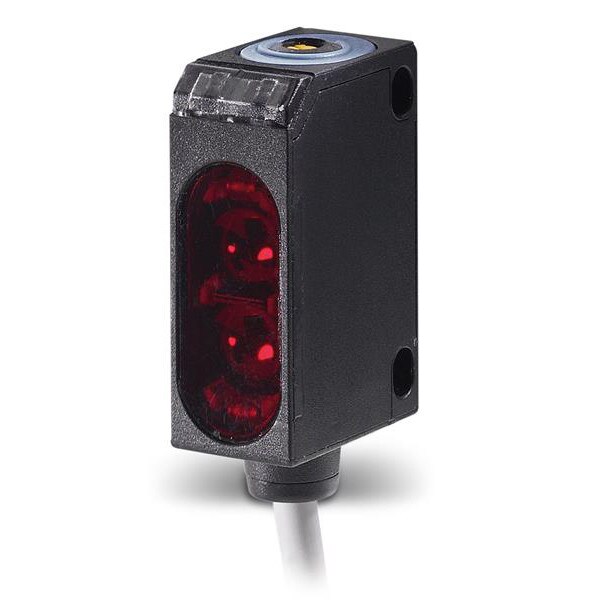

950701045 | S41-2-H | Miniature Basic Photoelectric Sensor with Through beam emitter with narrow beam, 2m cable
Overview
Datalogic S41-2-H / 950701045
S41 Mini Square Photoelectric Sensor, Emitter Narrow Beam Plastic No Trimmer - 2 Mt Cable
The miniature S41 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available with or without trimmer adjustment and M8 4-poles or 2m cable connection.
Features:- Performance/price ratio: most cost-effective detection solution
- Basic line: suitable for the main industrial applications
- Cable or M8 4-pole connection: flexible connection system able to meet customer applications
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
Technical Specifications
Operating Modes
LIGHT mode, DARK mode
Model
S41-2-H
Optic Function
Through beam Emitter
Emission
Infrared
Type
Photoelectric Sensor
Manufacturer
Datalogic
Power consumption (W)
0.035
SKU
950701045
Power supply
10 - 30 VDC
Connection
Pigtail
Adjustment Trimmer
Absent
Output
NPN-PNP
Operating Distance
1500 mm
Series
S41
Voltage
2V
Housing
Plastic
Wavelength
880 nm
Technical Documents
Datalogic S41 Sensors Manual (PDF)- Datalogic S41 Sensors Brochure (PDF)
- Datalogic Photoelectric Sensors Catalog (PDF)
- Datalogic Sensors Product Guide (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
