S970830201 | SR31-1 | Sr Fork Sensor, Label Sensor Dark/Light Input Pnp - M8
Overview

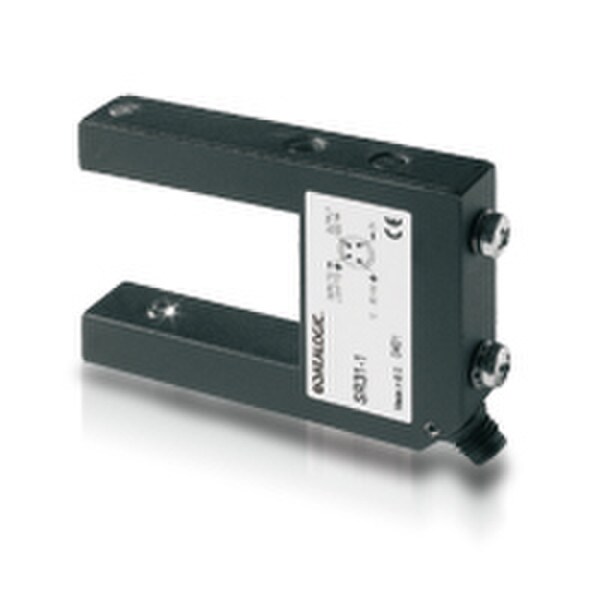

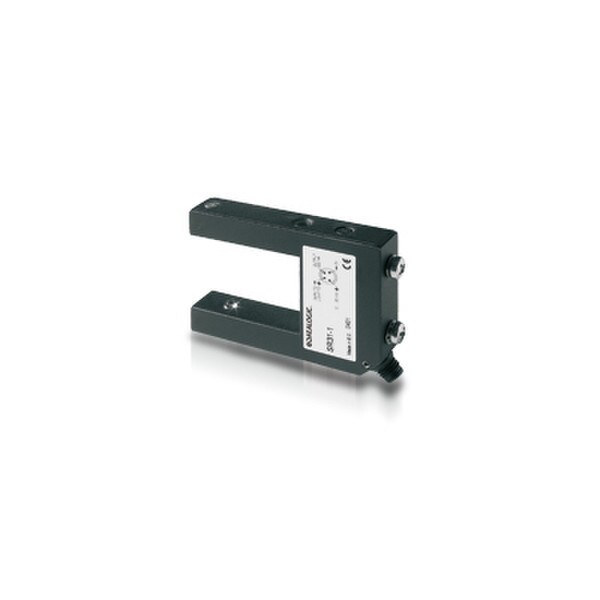

Datalogic SR31-1, S970830201
Sr Fork Sensor, Label Sensor Dark/Light Input Pnp - M8
The SR31 series is composed of fork sensors with infrared LED emission, distinguished by an elevated 10kHz switching frequency and by a sturdy and compact metal housing.The detection sensitivity is adjusted by means of a trimmer. The dark/Iight operating mode is configured according to the connection.The series includes M8 connector versions with NPN output, or PNP output; cable versions present both NPN/PNP outputs.The SR31 sensors have e 30 mm wide and 42 mm deep fork These sensors are suitable for detecting opaque Iabels on a transparent support, to control material presence and continuity, to detect synchronism pulses on toothed or holed wheels, or as on-off edge guide.
Features:- Infrared LED emission
- Sensitivity trimmer adjustment
- Elevated switching frequency
- Metal housing with wide fork
- Labeling machines
- Packaging and bottling lines
- Assembling lines
Technical Documents
Datalogic SR31 Fork Sensors Manual (PDF)- Datalogic SR31 Fork Sensors Brochure (PDF)
Datalogic SR23 M8 Fork Sensors DWG (DWG)- Datalogic Photoelectric Sensors Catalog (PDF)
- Datalogic Sensors Product Guide (PDF)
