Overview

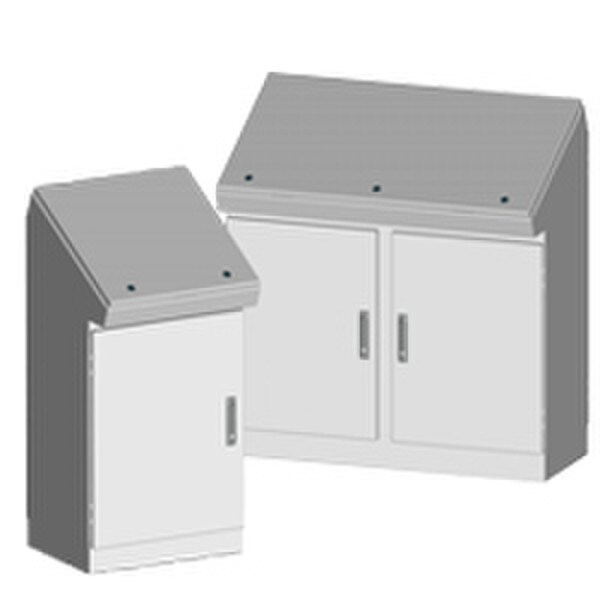

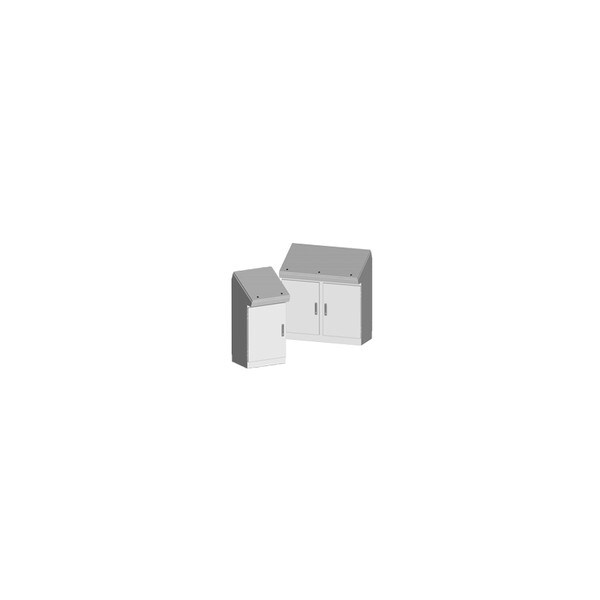

This product is intended for indoor use. It provides protection to personnel against access to hazardous parts. In addition, it protects the equipment inside the enclosure against introduction of solid foreign objects, falling dirt and water. It is designed for use in a standing or sitting position, supports both single and dual access, and boasts a top that opens for easier accessibility.


Construction -

  • 0.075" carbon steel.
  • Seams continuously welded and ground smooth.
  • 25 degree sloped top.
  • Door props on sloped door to hold in the open position.
  • Oil and water resistant gasket.
  • Flange trough collar around all sides of door opening.
  • Concealed hinge.
  • Removable doors.
  • Removable print pocket.
  • Ground studs on door and body.
  • Rubber pads with provision for leveling pads on bottom of enclosure.
  • Black, quarter turn latches on top door.
  • Key locking black 3 point flush swing handle in front door of single access front and rear doors on dual access.
  • Optional tamper-resistant inserts or padlocking handles are available.
  • Mounting studs welded on sides of interior body for mounting optional panels on dual access console.
  • Mounting channels welded on sides of interior body for mounting optional panels on dual access console.
  • Mounting hardware included for optional sub-panels.


    • Options -

    Can be special ordered in type 304 or 316 stainless steel.


    Finish -

    ANSI-61 gray powder coating inside and out. Optional Subpanels are powder coated white.


    Industry Standards - (IS2)

    NEMA Type 4, 12 and Type 13
    UL Listed Type 4 and 12
    CSA Type 4 and 12
    IEC 60529 IP 66
