Saginaw Series 14 Consoles

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

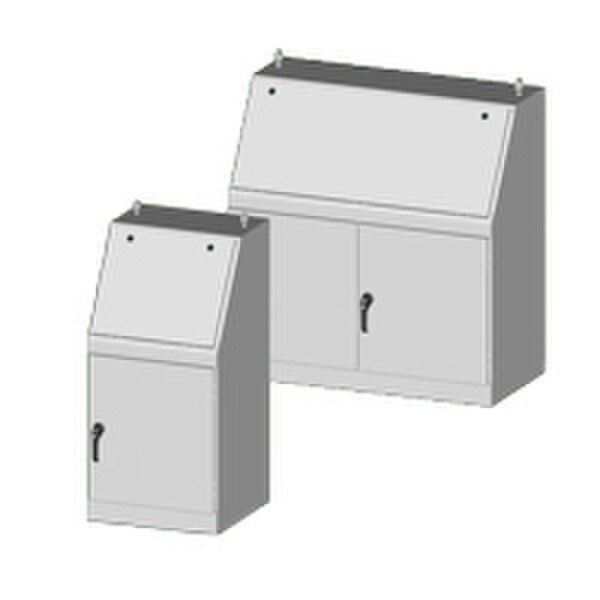

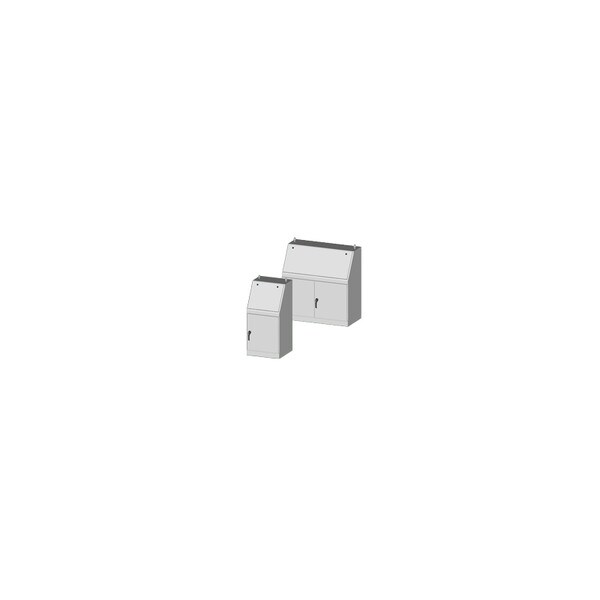

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Heavy duty construction provides protection from dirt, oil, dust, and water.


Construction -

  • 0.104" carbon steel.
  • Sloping control panel attached with concealed hinge on bottom edge. Door opens to 90 degrees.
  • Black zinc die cast keylocking/padlocking handles on front and rear doors.
  • 3 point latching mechanism.
  • Seams continuously welded and ground smooth.
  • Oil-resistant gasket on door.
  • Optional equipment mount to horizontal channels welded to sides.
  • Flush mounted doors.
  • Optional writing desk and top section available.
  • Interior print pocket.
  • Removable eyebolts in console body.
  • Ground stud on door.


    • Finish -

    ANSI-61 gray powder coat inside and out. Optional top sections are ANSI-61 gray powder coat inside and out. Optional panels are powder coated white.


    Industry Standards - (IS1)

    NEMA Type 12 and Type 13
    UL Listed Type 12
    CSA Type 12
    IEC 60529 IP 55

      Back

      Features & Benefits

      • Made from 0.104" carbon steel.
      • provides protection from dirt, oil, dust, and water.
      • Flush mounted doors.
