Saginaw

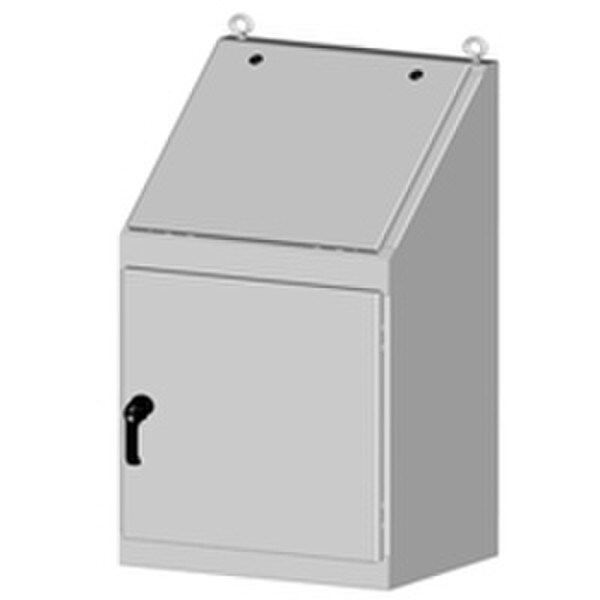

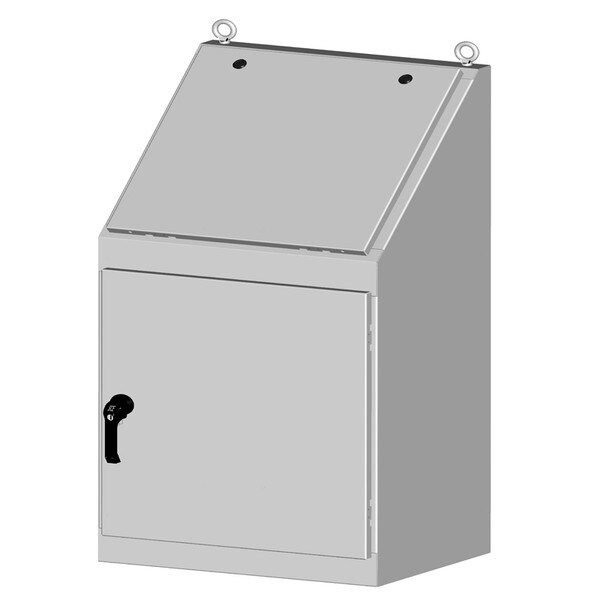

Series 9 Consoles

SKU: Saginaw Series 9 Consoles

Overview

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Provides protection from dirt, oil, dust and water.


Construction -

  • 0.075" carbon steel.
  • Sloping control panel attached with concealed hinge on bottom edge.
  • Door opens to 90 degrees.
  • Black zinc die cast keylocking/padlocking handle.
  • 3-point latching mechanism.
  • Seams coninously welded and ground smooth.
  • Oil-resistant gasket on door.
  • Interior print pocket.
  • Optional back and side panels are mounted on collar studs.
  • Removable eyebolts.
  • Ground stud on door.


    • Finish -

    ANSI-61 gray powder coat inside and out. Optional Subpanels are powder coated white.


    Industry Standards - (IS1)

    NEMA Type 12 and Type 13
    UL Listed Type 12
    CSA Type 12
    IEC 60529 IP 55

      Features & Benefits

      • Made from 0.075" carbon steel.
      • Provides protection from dirt, oil, dust and water.
      • Sloping control panel attached with concealed hinge on bottom edge.
