Series TT03 Torque Gauges

Overview

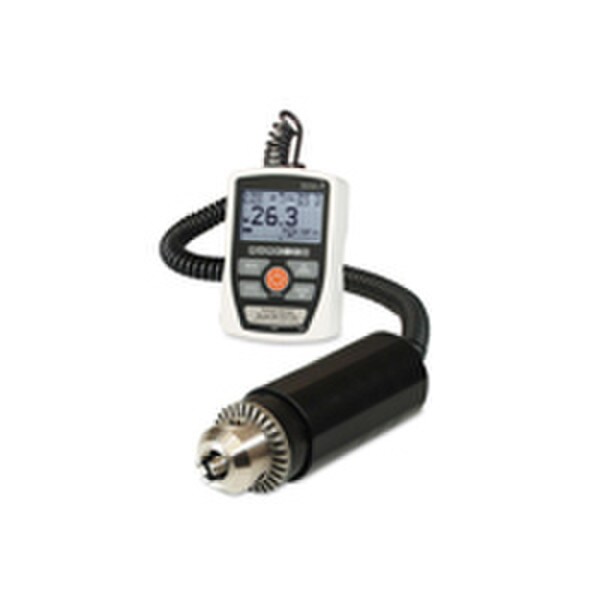

Series TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. USB output of individual data points is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates single point data. One-click export to Excel allows for further data manipulation.

Ergonomic torque sensor with Jacobs chuck
Peak torque values saved and displayed
High-speed 2,000 Hz sampling rate
USB data output (for continuous output, see Model 5i indicator with Series R50 torque sensor)
Programmable set points with pass/fail indicators
Live load bar graphs with set point markers
Peak memory for clockwise and counter clockwise readings
Set points always displayed
Configurable audio alarms and key tones
MESURTM Lite data collection software included
Battery or AC operation
Safe overload: 150% of capacity
CE mark

Accuracy:	±0.5% of full scale ±1 digit
Sampling rate:	2,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:	Individual data point output by pressing DATA key. Configurable up to 115,200 baud.
Configurable Settings:	Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload:	150% of full scale (display shows OVER at 110% and above)
Weight:	1.8 lb [0.8 kg]
Included items:	Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge).
Environmental requirements:	40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty:	3 years (see individual statement for further details)
