Series TT03C Digital Cap Torque Gauges
Overview

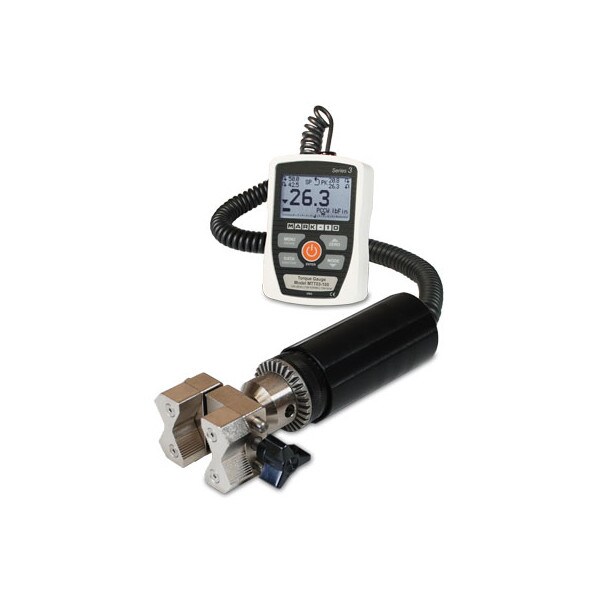

Mark-10 Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.
- Ergonomic torque sensor with Jacobs chuck
- Peak torque values saved and displayed
- High-speed 2,000 Hz sampling rate
- USB data output (for continuous output, see Model 5i indicator with Series R50 torque sensor and suitable grip)
- Programmable set points with pass/fail indicators
- Live load bar graphs with set point markers
- Peak memory for clockwise and counter clockwise readings
- Set points always displayed
- Configurable audio alarms and key tones
- MESUR Lite data collection software included
- Battery or AC operation
- Safe overload: 150% of capacity
- CE mark
| Accuracy: | ±0.5% of full scale ±1 digit |
| Cap dia. range | 0.65 - 1.55 in. [16.5 - 39.4 mm] |
| Sampling rate: | 2,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units: | lbFin, kgFmm, Ncm |
| USB Output: | Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings: | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight: | 2.2 lb [1.0 kg] |
| Included items: | Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge) |
| Environmental requirements: | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Warranty: | 3 years (see individual statement for further details) |
Features & Benefits
- Accuracy: ±0.5% of full scale ±1 digit
- Sampling rate: 2,000 Hz
- From $1354
- Cap dia. range: 0.65 - 1.55 in. [16.5 - 39.4 mm]
