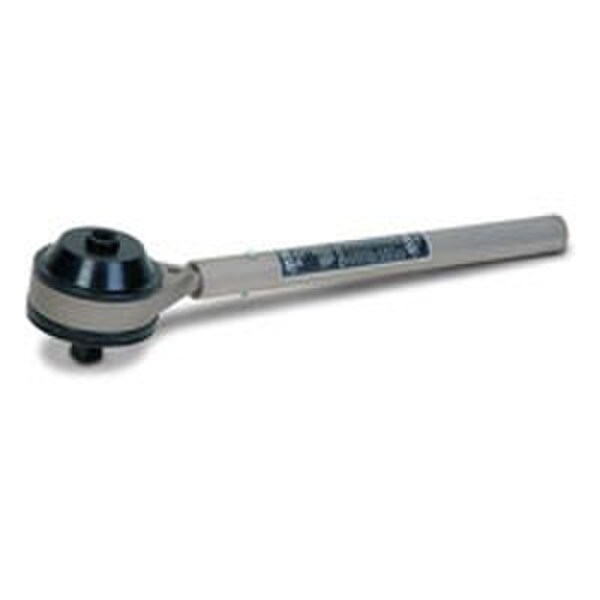

JHW-TM-392 | Torque Multiplier 2200 Ft-Lb

Williams TM-392

Torque Multiplier 2200 Ft-Lb

We offer a comprehensive range of reaction bar torque multipliers. The Hydratight Sweeney 390 series requires a low input torque and needle bearings for high efficency, they have an embedded overload protection through sharable output drives (a replacement is supplied with the multiplier), and they have an angle of turn protractor. The 392 and 393 multiplier are packaged in a sturdy carrying case.

Output Capacity     2,200 Ft Lbs (2983Nm) Â
Input Capacity        162 Ft Lbs (220 Nm)
Torque Ratio         13:6:1
Input SQ Drive       1/2”
Output SQ Drive      1”
Accuracy                +/- 5%
Overload Protection  Yes
Anti Backlash          Yes
Head Diameter       4.06” (103mm)
Height                   5.75” (146mm)
Length                  19.6” (498mm)
Weight                  15.2 Lbs (6.9 Kg)
Â
*Note : When selecting a torque multiplier, sufficient torque should be allowed to break out bolts. We suggest 2x tightening torque.
