JHW-TM-395 | Torque Multiplier 8000 Ft-Lb
Overview

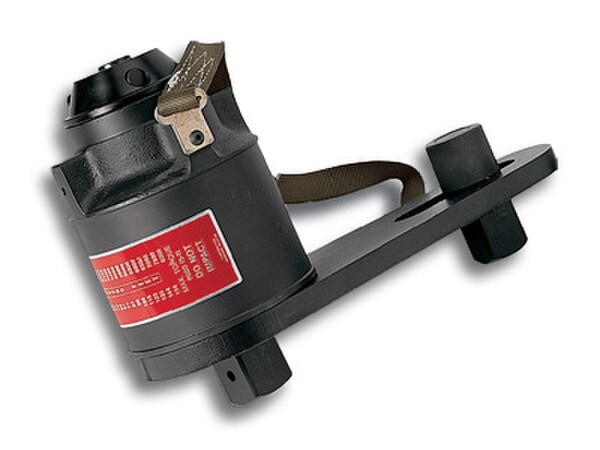

Williams TM-395
Torque Multiplier 8000 Ft-Lb
We offer a comprehensive range of reaction bar torque multipliers. The Hydratight Sweeney 300 series requires a low input torque. Includes features such as needle bearings for high efficiency and overload protection. The standard plate meets the majority of requirements plus we offer customer designs.
Output Capacity 8,000 Ft Lbs (10,850Nm)
Input Capacity 154 Ft Lbs (209 Nm)
Torque Ratio 1:52
Input SQ Drive 1/2”
Output SQ Drive 1-1/2”
Accuracy +/- 5%
Overload Protection Yes
Anti Backlash Yes
Head Diameter 5.81” (148mm)
Height 10.75” (273mm)
Length 15.2” (387mm)
Weight 50.3 Lbs (22.8 Kg)
*Note : When selecting a torque multiplier, sufficient torque should be allowed to break out bolts. We suggest 2x tightening torque.
Output SQ Drive 1-1/2”
Accuracy +/- 5%
Overload Protection Yes
Anti Backlash Yes
Head Diameter 5.81” (148mm)
Height 10.75” (273mm)
Length 15.2” (387mm)
Weight 50.3 Lbs (22.8 Kg)
*Note : When selecting a torque multiplier, sufficient torque should be allowed to break out bolts. We suggest 2x tightening torque.
Features & Benefits
- Input torque holding ratchet - holds multiplier in place during torquing
- Needle bearing construction for high efficiency
- Shearable output squares - to protect tool during overload
- Standard reaction plate meets most job applications
