TSC1000 | Test stand, hand wheel-operated, 1000 lb / 4.5 kN, vertical

(0)No Reviews yet
$1,926.40
$2064
$137.5999999999999
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Mark-10 TSC1000

Horiz. / Wall Mounting Kit For Tsf Series And Tst Series Stands

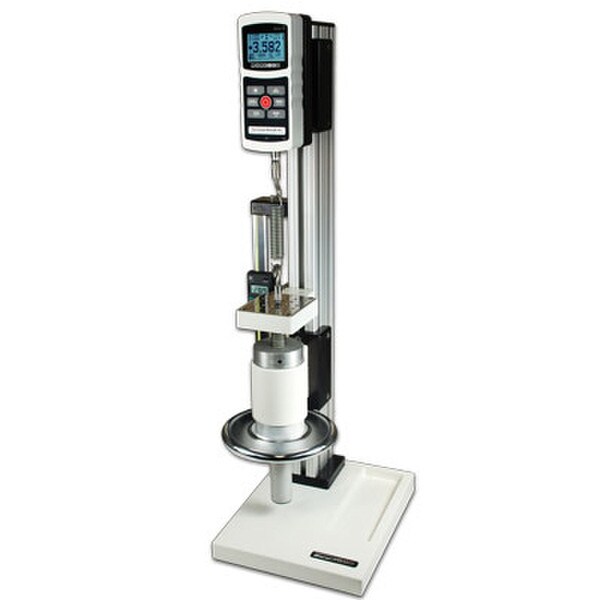

The TSC1000 Force Measurement Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force. A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

Back

Features & Benefits

  • Vertical Operation
  • Compatible with all Mark-10 force gauges, accessories and grips
  • Optional digital travel display
  • Precision Acme screw and nut
Back

Technical Specifications

Model
TSC1000
Type
Manual Test Stand
Manufacturer
Mark-10
Capacity
1000 lbF / 5 kN
Load Capacity
1000 lbF / 5 kN
SKU
TSC1000
Stock Code
3
Dimensions
10 x 25.8 in
Travel (mm)
89
Weight (lbs)
0.1
Series
TSC1000
Travel (in)
3.5
Capacity (lbs)
1000
