TST | Test stand, torque, hand wheel-operated, 100 lbFin / 11.5 Nm, vertical
Overview
Mark-10 TST
Torque Stand, Hand Wheel-Operated, Vertical

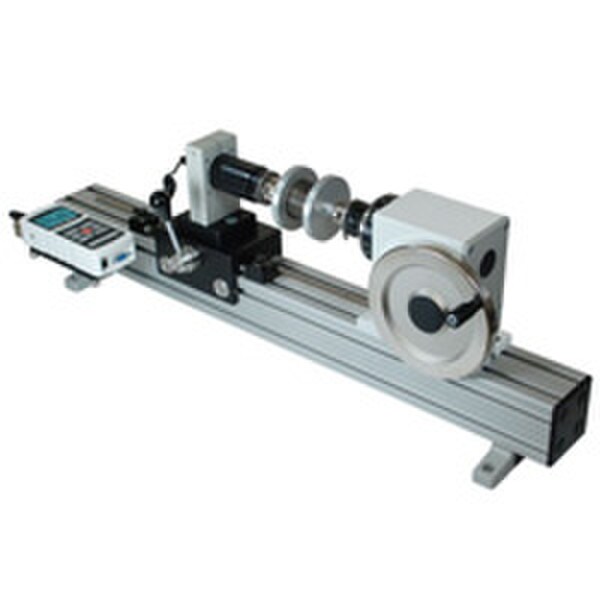

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TSTÂ’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator. Available in vertical and horizontal orientations.
Features & Benefits
- Vertical Operation
- Smooth hand wheel operation
- Lever operated slider for engaging and disengaging samples
- Torque plate with tapped holes for grip and fixture mounting
Technical Specifications
Model
TST
Type
Manual Torque Test Stand
Manufacturer
Mark-10
Capacity
100 lbFin / 11.3 Nm
Load Capacity
100 lbFin / 11.3 Nm
SKU
TST
Stock Code
3
Dimensions
9.4 x 31.6 in
Travel (mm)
394
Max Rated Capacity (In Lb)
100
Weight (lbs)
0.1
Series
TST
Travel (in)
15.5
Technical Documents
