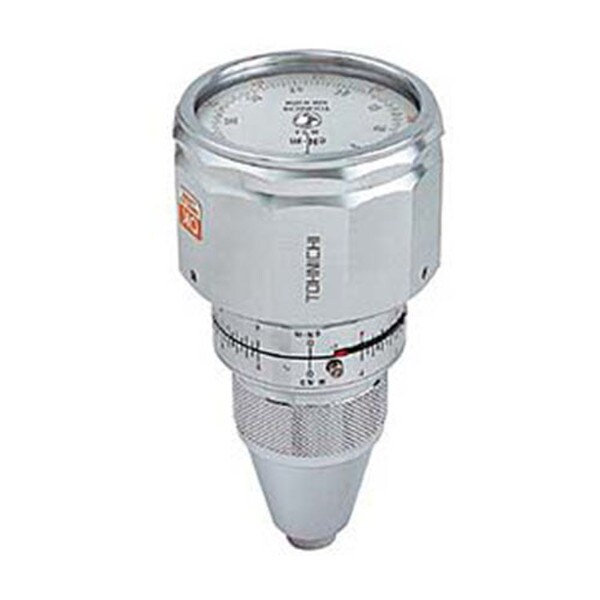

1.5BTG-S | Analog torque gauge with memory pointers, 1.5 kgf cm
Overview
Introducing the Tohnichi 1.5BTG-S Analog Torque Gauge, a compact and reliable tool designed to measure low torque values with utmost precision. Manufactured by Tohnichi, a leading name in the industry, this analog torque gauge combines advanced features with user-friendly design, making it an indispensable tool for various applications.
- Torque Range: 0.2 - 1.5 kgf cm
- Overall Length: 135mm
- Accuracy: +/-2% of full scale
- Graduation: 0.05 kgf cm
- Type: Analog
- Peak Hold: Yes
- Reversible: Yes
- Units: kgf cm
Features & Benefits
- Analog Display: The easy-to-read analog display provides clear and accurate torque readings, allowing users to make precise adjustments and measurements.
- Memory Pointers: Equipped with memory pointers, the 1.5BTG-S torque gauge enables users to retain and compare multiple torque readings, simplifying the analysis and evaluation process.
- Bi-Directional Operation: The gauge can measure torque in both clockwise and counterclockwise directions, accommodating a wide range of applications.
- Compact and Portable: Its compact and lightweight design makes it highly portable, allowing users to carry out measurements in various locations with ease.
- Push Lock Button: The push lock button securely holds the gauge in place while securing the test object in the chuck, ensuring accurate and stable measurements.
Technical Specifications
Model
1.5BTG-S
Type
Torque Gauge
Wrench Type
Analog Torque Gauge
Manufacturer
Tohnichi
SKU
1.5BTG-S
Stock Code
2
Dimensions
119 x 64.2 mm
Min Torque (Kgf Cm)
0.2
Max Torque (Kgf Cm)
1.5
Overall Length
135
Weight (lbs)
0.01
Series
BTG
Accuracy
±2%
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
