1.5RTD | Rotary Adjustable Torque Screwdriver, 0.2 - 1.5 Kgf cm, 0.01 grad.
Overview

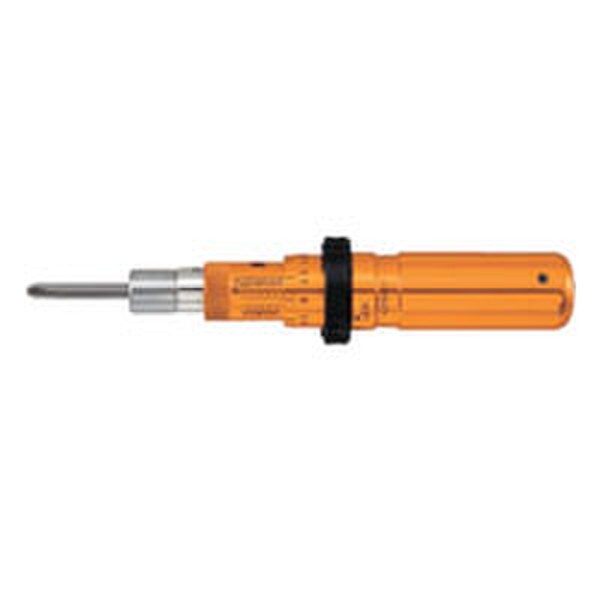

The Tohnichi 1.5RTD Rotary Adjustable Torque Screwdriver is a versatile and precise tool designed to meet the demands of various assembly tasks. Manufactured by Tohnichi, a renowned brand in the industry, this screwdriver combines exceptional performance with user-friendly features to enhance your fastening efficiency.
- Min Torque(Kgf cm): 0.2
- Max Torque(Kgf cm): 1.5
- Drive Size: 1/4'' hex
- Style: Inline
- Manufacturer: Tohnichi
Features & Benefits
- Adjustable Torque Range: With an adjustable torque range from 0.2 to 1.5 Kgf cm, this screwdriver allows you to fine-tune the torque output to suit different applications, ensuring accurate and controlled fastening.
- Rotary Slip Mechanism: The innovative rotary slip mechanism prevents over-torque and protects delicate components by disengaging the clutch when the set torque is reached. This feature minimizes the risk of damage and ensures consistent fastening results.
- Hexagonal Locker: The hexagonal-shaped locker prevents the screwdriver from rolling when placed on flat surfaces, providing stability and convenience during use.
- Easy Torque Adjustment: The external scale and black lock ring enable quick and simple torque adjustments. Simply twist the body to align with the desired torque setting and secure it in place, allowing for seamless transitions between tasks.
- Durable Toggle Clutch Mechanism: Tohnichi's toggle clutch torque detection mechanism ensures enhanced durability and reliable performance, even with frequent use.
Technical Specifications
Model
1.5RTD
Screw Size
M1.4 - M1.8
Type
Rotary Adjustable Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Click Torque Wrench
Manufacturer
Tohnichi
SKU
1.5RTD
Stock Code
2
Style
Inline
Min Torque (Kgf Cm)
0.2
Max Torque (Kgf Cm)
1.5
Overall Length
100mm
Weight (lbs)
0.01
Series
RTD
Accuracy
±3%
Technical Documents
Tohnichi Torque Drivers RTD LTD MLD Series Operating Instruction (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
