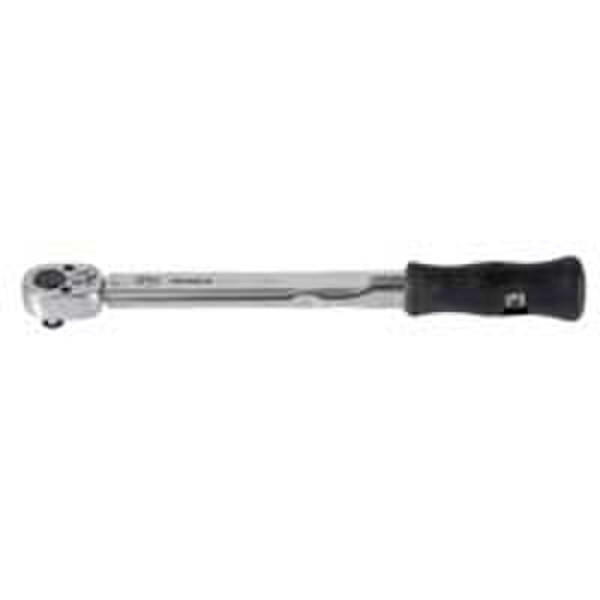

100PQL | Pre-Lock Adjustable Torque Wrench, 20 - 100 Kgf cm, 1 grad.
Overview
Introducing the Tohnichi 100PQL Pre-Lock Adjustable Torque Wrench, a top-of-the-line tool designed to bring precision and efficiency to your tightening tasks. Manufactured by Tohnichi, this adjustable torque wrench combines advanced features with user-friendly design, making it an indispensable asset in various assembly applications.
- Min Torque(Kgf cm): 20
- Max Torque(Kgf cm): 100
- Drive Size: 1/4'' square
- Head Type: Angle Head
- Manufacturer: Tohnichi
Features & Benefits
- Pre-Lock Mechanism: The innovative pre-lock mechanism ensures a secure and accurate torque setting, preventing accidental adjustments during operation. This feature enhances the reliability and consistency of your fastening processes.
- Adjustable Torque Range: With a torque range from 20 to 100 Kgf cm, this torque wrench offers versatility to tackle a wide range of tightening requirements. The precise 1-grad scale allows for accurate adjustments to suit your specific needs.
- Clear Click Sound: A clear and audible click sound signals the completion of tightening upon reaching the set torque value. This feature provides a tactile and auditory confirmation, enhancing user confidence and reducing the risk of overtightening.
- Standard Hex Key Adjustment: The torque setting is easily adjusted using a standard hex key, providing convenience and flexibility during use. The secure locking mechanism ensures that the desired torque setting remains intact.
- Space-Saving Ratchet Head: The ratchet head is designed with 24 teeth and a 15-degree operating range, allowing for use in confined spaces where maneuverability is limited. This feature makes the wrench ideal for accessing hard-to-reach fasteners.
Technical Specifications
Model
100PQL
Type
Pre-Lock Adjustable Torque Wrench
Drive size
1/4'' square
Wrench Type
Preset Torque Wrench
Manufacturer
Tohnichi
SKU
100PQL
Stock Code
2
Style
Angle Head
Min Torque (Kgf Cm)
20
Max Torque (Kgf Cm)
100
Overall Length
190mm
Weight (lbs)
0.01
Series
PQL
Accuracy
±3%
