10FTD-A | Dial Torque Screwdriver, 1 - 10 in lbs, 0.2 grad.
Overview

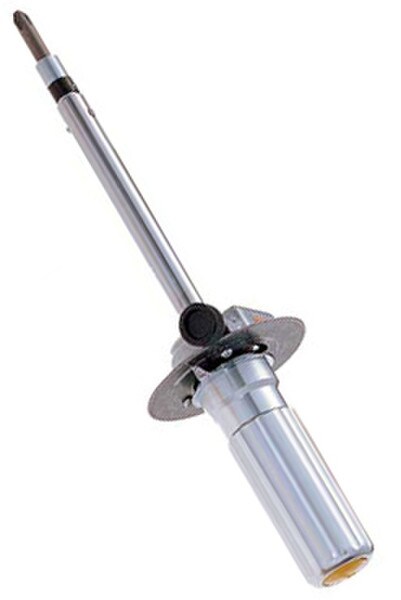

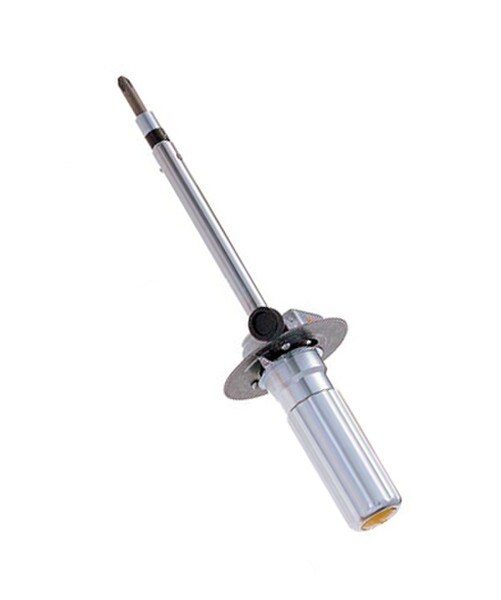

Introducing the Tohonichi 10FTD-A Dial Torque Screwdriver, a remarkable tool designed to revolutionize your torque measurement and fastening tasks. Engineered by Tohnichi, this dial torque screwdriver combines precision, versatility, and durability to meet the demands of various applications.
- Torque Range: 1 - 10 in lbs
- Graduation: 0.2 grad
- Drive Size: 1/4'' hex
- Handle Type: Inline
- Memory Pointer and Preset Knob: Yes
- Applicable for International Use: Yes
- Manufacturer: Tohnichi
Features & Benefits
- Precise Torque Measurement: With a torque range of 1 to 10 in lbs and a graduation of 0.2 grad, the 10FTD-A Dial Torque Screwdriver enables accurate and reliable torque readings, ensuring consistent and precise fastening results.
- Pre-load Knob: Equipped with a pre-load knob, this screwdriver allows you to apply preliminary torque, reducing the amount of turning and strain on your wrist. This thoughtful feature enhances user comfort and minimizes fatigue during prolonged use.
- International Compliance: The Tohonichi 10FTD-A Dial Torque Screwdriver complies with the calibration procedures of ISO 6789 Type I Class D, ensuring its accuracy and reliability. It is applicable for international use, including the EU region, making it a trusted tool for professionals worldwide.
- Bi-directional Scale Plate: The screwdriver features a bi-directional scale plate, providing versatility for both clockwise and counterclockwise torque measurements. This flexibility makes it suitable for a wide range of applications.
Technical Specifications
Model
10FTD-A
Stat 1
3% Accuracy
Stat 2
1.0 - 10.0 In Lb
Screw Size
M2.5 - M3.5
Type
Dial Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Dial Torque Wrench
Manufacturer
Tohnichi
Length (mm)
215
Increments
0.2
Accuracy (+/-)
3%
SKU
10FTD-A
Stock Code
2
Style
Inline
Min Torque (In Lb)
1
Max Torque (In Lb)
10
Overall Length
215.5mm
Weight (lbs)
0.62
Series
FTD
Accuracy
±3%
Technical Documents
FTD Screwdriver User Guide (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
