1200ATG-S | Analog torque gauge with memory pointers, 1200 gf cm
Overview

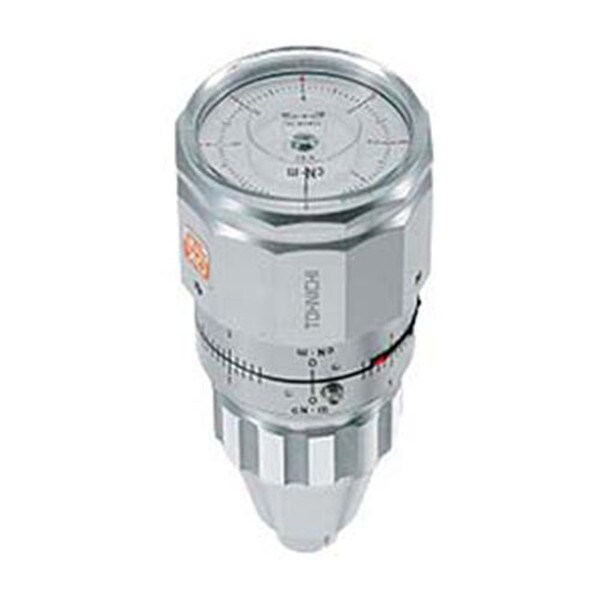

Introducing the Tohnichi 1200ATG-S Analog Torque Gauge, a compact and reliable tool designed to measure low torque values with utmost precision. Manufactured by Tohnichi, a leading brand in the assembly industry, this analog torque gauge combines advanced features with user-friendly design, making it an indispensable tool for quality control and testing applications.
- Torque Range: 0.1 - 1.2 kgf cm
- Accuracy: +/-2% of full scale
- Graduation: 0.05 kgf cm
- Overall Length: 99 mm
- Weight: 150 g
- Drive: 1/4" square
- Manufacturer: Tohnichi
Features & Benefits
- Analog Display: The 1200ATG-S features a clear and easy-to-read analog display, providing instant and accurate torque readings.
- Memory Pointers: Equipped with memory pointers, this torque gauge allows you to capture and retain peak torque values for convenient reference and analysis.
- Bi-directional Operation: This analog torque gauge can measure torque in both clockwise and counterclockwise directions, accommodating a wide range of applications.
- Compact and Portable: Its compact and lightweight design makes the 1200ATG-S highly portable, allowing you to carry out torque measurements anywhere with ease.
- Versatile Range: With a torque range of 0.1 to 1.2 kgf cm, the 1200ATG-S is suitable for measuring low torque values commonly found in various industries.
Technical Specifications
Model
1200ATG-S
Type
Torque Gauge
Wrench Type
Analog Torque Gauge
Manufacturer
Tohnichi
SKU
1200ATG-S
Stock Code
2
Dimensions
89 x 43.5mm
Min Torque (Kgf Cm)
0.1
Max Torque (Kgf Cm)
1.2
Overall Length
99
Weight (lbs)
0.01
Series
ATG
Accuracy
±2%
Max Torque (gf cm)
1200
Min Torque (gf cm)
100
