12LTD | Adjustable Torque Screwdriver, 2 - 12 Kgf cm, 0.1 grad.
Overview

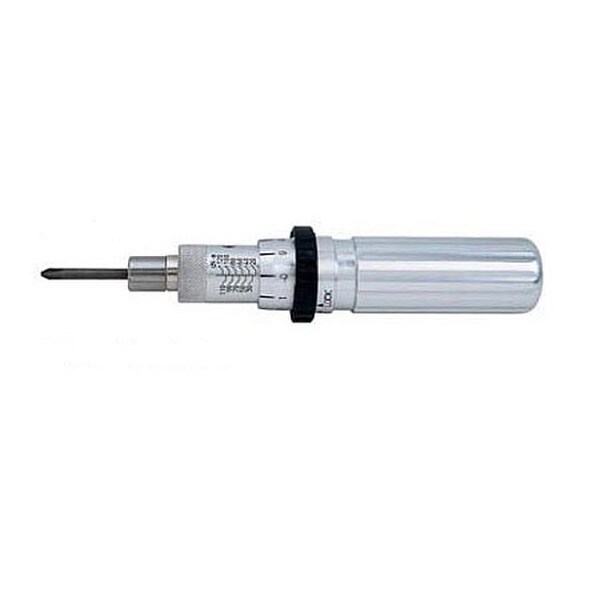

The Tohnichi 12LTD Adjustable Torque Screwdriver is a versatile and reliable tool designed to enhance precision and efficiency in your assembly and maintenance tasks. Manufactured by Tohnichi, a renowned brand in the industry, this adjustable torque screwdriver offers exceptional accuracy and durability.
- Min Torque(Kgf cm): 2
- Max Torque(Kgf cm): 12
- Drive Size: 1/4" hex
- Torque Adjustment: External scale
- Body Type: Inline
- Brand: Tohnichi
Features & Benefits
- Adjustable Torque Range: With an adjustable torque range from 2 to 12 Kgf cm, this screwdriver allows you to fine-tune the torque output based on your specific needs, ensuring optimal fastening results.
- External Scale and Lock Ring: The external scale and lock ring mechanism enable easy and secure adjustment of the desired torque value. Simply twist the body to align with the required setting and lock it in place with the black lock ring.
- Non-Rotary Type: The 12LTD model is a non-rotary screwdriver, providing precise torque control without the risk of over-tightening. For applications requiring a rotary slip feature, consider the RTD version.
- Hexagonal Locker: The hexagonal-shaped locker prevents the screwdriver from rolling when placed on flat surfaces, minimizing the risk of accidental movement or damage.
- Toggle Clutch Torque Detection: Tohnichi's innovative toggle clutch torque detection mechanism ensures accurate and consistent torque measurement, enhancing the reliability of your fastening operations.
Technical Specifications
Model
12LTD
Screw Size
M3 - M3.5
Type
Adjustable Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Click Torque Wrench
Manufacturer
Tohnichi
SKU
12LTD
Stock Code
2
Style
Inline
Min Torque (Kgf Cm)
2
Max Torque (Kgf Cm)
12
Graduations (cmkg)
0.1
Overall Length
130mm
Weight (lbs)
0.01
Series
LTD
Accuracy
±3%
Technical Documents
Tohnichi Torque Drivers RTD LTD MLD Series Operating Instruction (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
