AC800I3-3/8 | High Power Semi-Automatic Airtork Torque Wrench, 200 - 800 in lbs
Overview

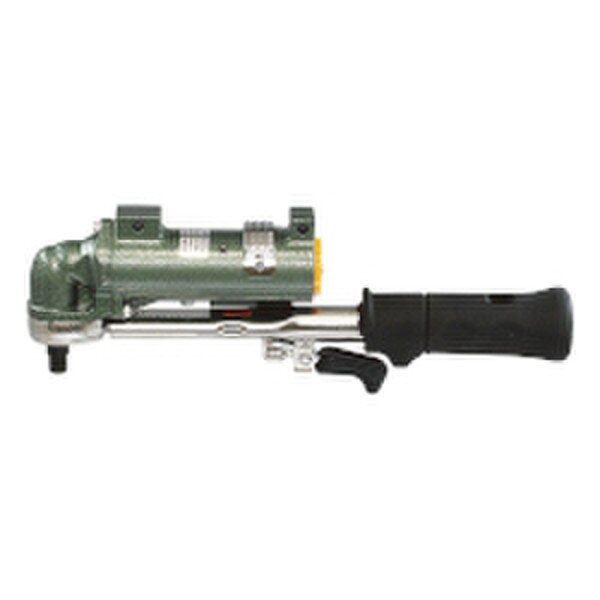

Introducing the Tohnichi AC800I3-3/8 High Power Semi-Automatic Airtork Torque Wrench, a revolutionary tool designed to redefine your tightening processes. Engineered by Tohnichi, this innovative torque wrench combines power, precision, and efficiency to elevate your assembly operations to new heights.
- Min Torque(In Lb): 200
- Max Torque(In Lb): 800
- Drive Size: 3/8'' square
- Free Speed(RPM): 900
- Head Type: Angle Head
- Manufacturer: Tohnichi
Features & Benefits
- High Power Performance: With a torque range of 200 to 800 in lbs, this torque wrench delivers exceptional power to handle demanding fastening applications with ease.
- Semi-Automatic Operation: The semi-automatic air motor mounted on the wrench enables fast provisional tightening, followed by accurate final tightening performed manually. This streamlined process enhances productivity and reduces cycle times.
- Simple Torque Adjustment: Changing tightening torque is made effortless with the use of a hex key to adjust the scale on the handle. This allows for quick and precise adjustments to suit different fastening requirements.
- Improved Efficiency: This tool replaces the conventional two-step tightening process, integrating both pneumatic tool and click torque wrench into a single unit. By eliminating the need for multiple tools, it maximizes efficiency and saves valuable time.
- Anti-Vibration Sockets: The new ratchet square drive of the AC3 version is compatible with anti-vibration sockets (not included), effectively reducing vibrations during the tightening process.
Technical Specifications
Model
AC800I3-3/8
Type
American
Drive size
3/8'' square
Manufacturer
Tohnichi
Free Speed (RPM)
900
SKU
AC800I3-3/8
Stock Code
2
Style
Angle Head
Min Torque (In Lb)
200
Max Torque (In Lb)
800
Series
AC3
Weight (kg)
2
