LC200N3-G | Torque Tester, 50 - 2000 kgf cm

(0)No Reviews yet
$2,909.85
$3063
$153.1500000000001
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

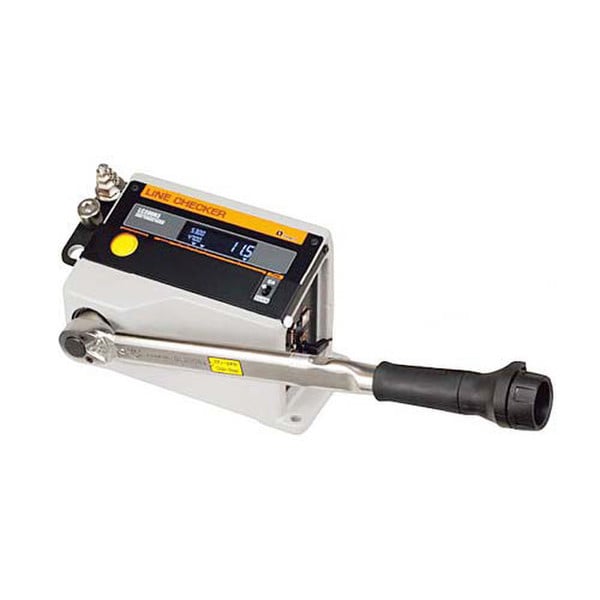

Introducing the Tohnichi LC200N3-G Torque Tester, a cutting-edge digital device designed to revolutionize your torque measurement processes. This advanced torque tester from Tohnichi combines exceptional accuracy with user-friendly features, making it an indispensable tool for quality control and assembly operations.

  • Torque Range: 50 - 2000 kgf cm
  • Accuracy: +/-0.5% F.S.
  • Resolution: 0.1 kgf cm
  • Display: LCD with backlight
  • Power Supply: AC 100V 50/60Hz or AA alkaline batteries (2)
  • Dimensions: 174 x 140 x 200 mm
  • Weight: 1.8 kg
  • Drive: 1/2'' square

Features & Benefits

  • Wide Torque Range: With a broad torque range of 50 to 2000 kgf cm, the LC200N3-G Torque Tester caters to various applications, ensuring precise measurements across different torque levels.
  • Quick and Accurate Readings: Featuring a high-speed sampling rate, this torque tester delivers fast and reliable torque readings, enabling efficient testing and analysis.
  • Statistical Processing Functions: Equipped with built-in statistical processing functions, the LC200N3-G Torque Tester automatically calculates minimum, maximum, and mean values, providing valuable insights into your torque data.
  • Pass/Fail Judgment Display: The integrated color LCD screen provides clear and intuitive pass/fail judgment, simplifying the interpretation of test results and reducing the risk of errors.
  • Easy-to-Use Interface: The user-friendly keypad setup allows for convenient configuration of multiple units of measure, making it adaptable to different measurement requirements.

Technical Specifications

Model
LC200N3-G
Drive size
1/2'' square
Wrench Type
Digital Torque Wrench Tester
Manufacturer
Tohnichi
SKU
LC200N3-G
Stock Code
2
Max Torque (In Lb)
1740
Max Torque (Ft Lb)
140
Max Torque (Nm)
200
Min Torque (Kgf Cm)
50
Max Torque (Kgf Cm)
2000
Weight (lbs)
1
Series
LC3-G

Technical Documents

    We are always wanting to provide more information! In need of a technical document? Let us know!

    Videos & Media

    introducing the tohnichi lc200n3-g torque tester, a cutting-edge instrument designed to ensure the accuracy and reliability of your torque wrenches. this advanced torque tester combines precision engineering with user-friendly features, making it an indispensable tool for quality control in various industries. with a wide torque range of 50 to 2000 kgf cm, the lc200n3-g torque tester caters to a diverse range of applications. the enhanced quick check function simplifies the testing process, providing fast and accurate results with the help of a color display for easy judgment. equipped with built-in statistical processing functions, this torque tester automatically calculates minimum, maximum, and mean values, enabling comprehensive data analysis. the lc200n3-g torque tester also allows you to read the actual running torque, giving you valuable insights into the performance of your torque wrenches. invest in the tohnichi lc200n3-g torque tester and elevate your quality control measures. its wide torque range, quick check function, statistical processing capabilities, and actual running torque readout make it an essential tool for maintaining accurate and reliable torque wrenches.

    Frequently Asked Questions

    What is the LC200N3-G's torque range?

    The LC200N3-G has a torque range of up to 1740 in lbs.
    The LC200N3-G Torque Tester is ideal for use with a broad range of external transducers to test output of tools for torque verification.
    Torque Testers like the LC20N3-G should be checked and recalibrated every six to twelve months, or 5000 cycles; whichever comes first.
    Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
