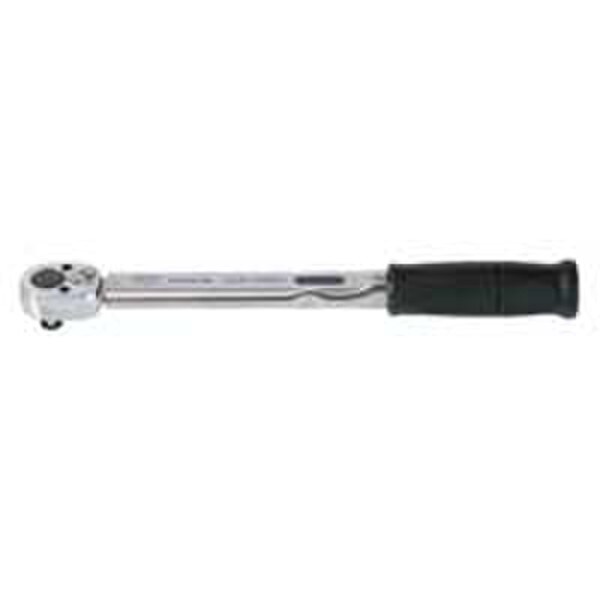

QSP3N4 | Preset Torque Wrench, 0.6 - 3 Nm
Overview
The Tohnichi QSP3N4 Preset Torque Wrench is a high-quality tool designed for precise and efficient tightening of bolts. With its preset style, this torque wrench prevents accidental changes to the set torque, ensuring accurate and consistent results. The wrench features a clear CLICK sound that signals the completion of tightening upon reaching the set torque, reducing the risk of overtightening or undertightening.
- Min Torque(Nm): 0.6
- Max Torque(Nm): 3
- Drive Size: 1/4'' square
- Head Type: Angle Head
- Manufacturer: Tohnichi
Features & Benefits
- Preset Style: The preset style of this torque wrench ensures that the set torque cannot be changed without a special tool, preventing unintentional adjustments and maintaining accuracy.
- Audible Click Signal: A clear CLICK sound signals the completion of tightening, providing the user with a tactile and audible cue to avoid overtightening or undertightening.
- International Compliance: The torque wrench is compliant with international standards, including the EU region, making it suitable for use in various applications and locations.
- Space-Saving Ratchet Head: The ratchet head has 24 teeth with a 15-degree operating range, allowing for use in confined spaces where maneuverability is limited.
- ISO 6789 Type II Class B Calibration: The wrench meets the requirements of ISO 6789 Type II Class B calibration procedures, ensuring accuracy and reliability in torque measurements.
Technical Specifications
Model
QSP3N4
Type
Preset Torque Wrench
Drive size
1/4'' square
Wrench Type
Preset Torque Wrench
Manufacturer
Tohnichi
SKU
QSP3N4
Stock Code
2
Style
Angle Head
Min Torque (Nm)
0.6
Max Torque (Nm)
3
Overall Length
165mm
Weight (lbs)
0.01
Series
QSP
