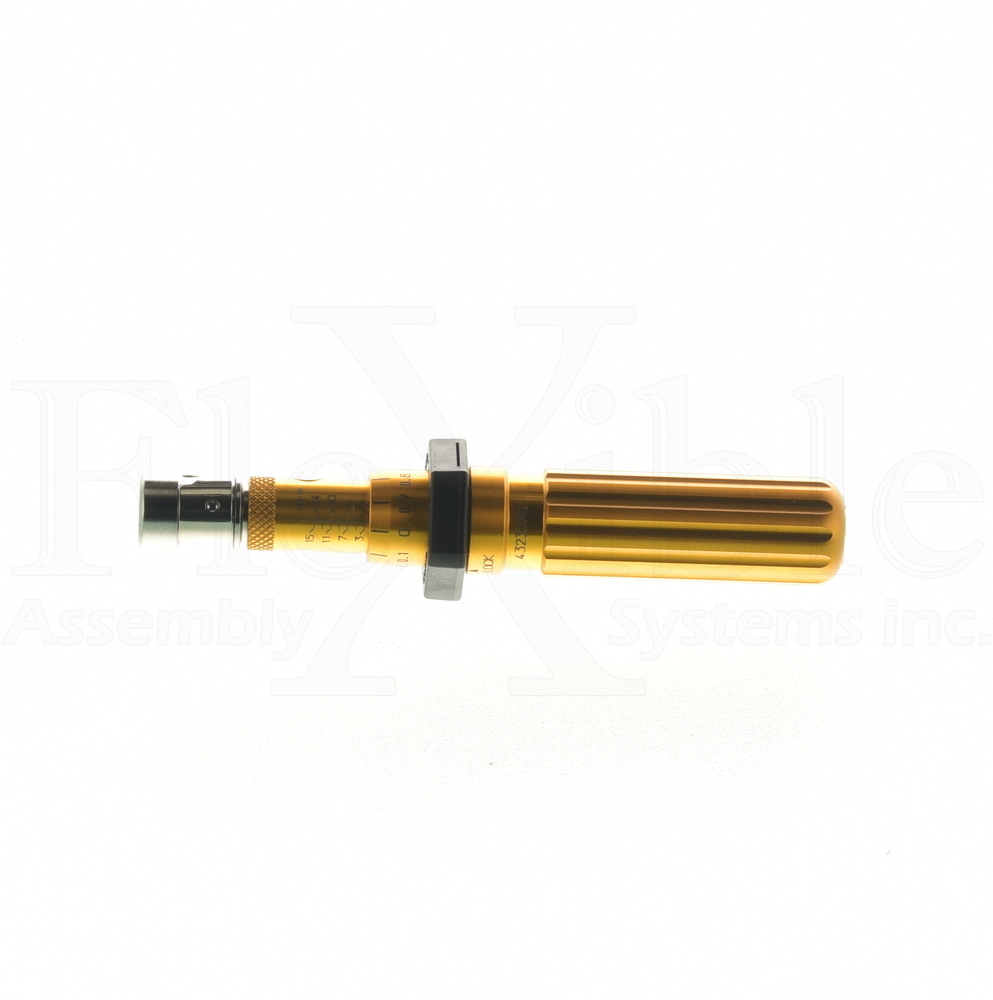

RTD15CN | Rotary Adjustable Torque Screwdriver, 2 - 15 Ncm, 0.1 grad.
Overview
The Tohnichi RTD15CN Rotary Adjustable Torque Screwdriver is a versatile and precise tool designed to meet the demands of various assembly applications. Manufactured by Tohnichi, a renowned brand in the industry, this screwdriver combines exceptional performance with user-friendly features to enhance your fastening efficiency.
- Torque Range: 2 - 15 Ncm
- Accuracy: 0.1 grad.
- Bit Type: 1/4" hex root shaped (sold separately)
- Calibration: Certificate of Calibration from ISO factory included; NIST Certificates available upon request for an additional fee.
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
- Counterclockwise tightening model available upon request
Features & Benefits
- Adjustable Torque Range: With an adjustable torque range from 2 to 15 Ncm, this screwdriver allows you to fine-tune the torque output to match your specific needs, ensuring accurate and consistent fastening results.
- Rotary Slip Mechanism: The innovative rotary slip mechanism prevents over-torque situations, safeguarding your components from damage and ensuring reliable fastening. You will sense and hear a click at the set torque, indicating that the desired torque has been reached.
- Hexagonal Locker: The hexagonal-shaped locker prevents the screwdriver from rolling when placed on flat surfaces, minimizing the risk of accidental movement and damage to the tool.
- Easy Torque Adjustment: The external scale enables effortless torque adjustment by simply twisting the body and aligning it with the desired setting. The black lock ring securely holds the selected torque in place, preventing accidental adjustments.
- Durable Toggle Clutch Mechanism: Tohnichi's renowned toggle clutch torque detection mechanism ensures enhanced durability and reliable performance, even with frequent use.
Technical Specifications
Model
RTD15CN
Min Torque (Ncm)
2
Max Torque (Ncm)
15
Screw Size
M1.4 - M1.8
Type
Rotary Adjustable Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Click Torque Wrench
Manufacturer
Tohnichi
SKU
RTD15CN
Stock Code
2
Style
Inline
Overall Length
100mm
Weight (lbs)
0.01
Series
RTD
Accuracy
±3%
Technical Documents
Tohnichi Torque Drivers RTD LTD MLD Series Operating Instruction (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
