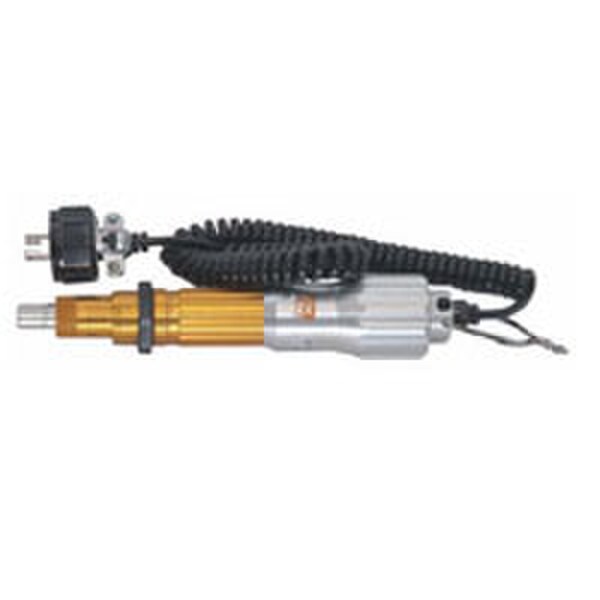

RTDLS40I | Error Proofing Adjustable Torque Screwdriver with limit switch, 10 - 40 in lbs, 0.5 grad.
Overview
Introducing the Tohicni RTDLS40I Error Proofing Adjustable Torque Screwdriver, a revolutionary tool designed to eliminate human tightening errors in your assembly processes. This innovative screwdriver combines precision, efficiency, and error-proofing capabilities to take your fastening tasks to the next level.
- Min Torque(In Lb: 10.0)
- Max Torque(In Lb: 40.0)
- Graduation: 0.5
- Length(In): 1.13
- Width(In): 4.52
- Configuration: Inline
- Manufacturer: Tohonichi
Features & Benefits
- Error-Proofing Mechanism: Equipped with a limit switch, the RTDLS40I ensures that every fastening is executed correctly. When the set torque is achieved, the toggle activates, providing a clear indication of proper tightening.
- Adjustable Torque Range: With a torque range of 10 to 40 in lbs and a graduation of 0.5 grad, this screwdriver offers precise torque control for a wide variety of applications.
- Frequency Hopping System: The screwdriver employs a frequency hopping system, ensuring reliable transmission and minimizing interference.
- Wireless Communication: The RTDLS40I features wireless transmission capabilities, enabling it to send a completion signal to a receiver box. This enhances efficiency and streamlines your assembly processes.
- Versatile Compatibility: The RTDLS40I is compatible with the Receiver Model R-FH256 (sold separately), allowing for integration into your existing assembly system.
Technical Specifications
Model
RTDLS40I
Screw Size
M4.5 - M6
Type
Error Proofing Adjustable Torque Screwdriver
Wrench Type
Electric Torque Wrench
Manufacturer
Tohnichi
SKU
RTDLS40I
Stock Code
2
Style
Inline
Min Torque (Nm)
1.13
Max Torque (Nm)
4.52
Overall Length
212mm
Series
RTDLS
Accuracy
±3%
Technical Documents
Tohnichi RTDLS RNTDLS Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
