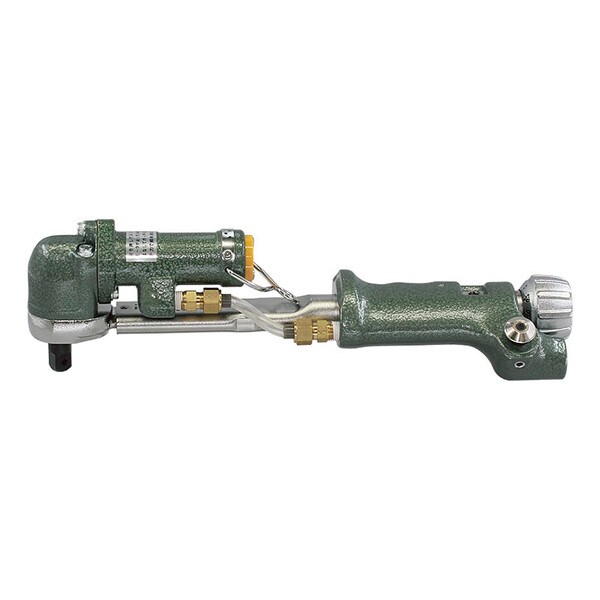

A10N3 | Semi-Automatic Airtork Torque Wrench, 3 - 10 Nm
Overview
Introducing the Tohnichi A10N3 Semi-Automatic Airtork Torque Wrench, a revolutionary tool that combines speed, precision, and efficiency in one powerful package. Engineered by Tohnichi, this innovative torque wrench takes your assembly operations to new heights with its cutting-edge features and exceptional performance.
- Min Torque(Nm): 3
- Max Torque(Nm): 10
- Drive Size: 3/8'' square
- Free Speed(RPM): 750
- Head Type: Angle Head
- Start Type: Push-to-Start
- Manufacturer: Tohnichi
Features & Benefits
- Semi-Automatic Operation: Experience the best of both worlds with the A10N3's semi-automatic design. The air motor mounted on the torque wrench enables fast provisional tightening, while the final tightening is achieved with the precision of a hand-operated torque wrench.
- Enhanced Efficiency: This tool streamlines your assembly processes by replacing the conventional two-step tightening process with a single, highly efficient step. Say goodbye to time-consuming tool changes and hello to increased productivity.
- Palm Button Control: The palm button engages the air motor, allowing for effortless provisional tightening. Once the desired provisional torque is reached, release the button and apply hand force until the torque wrench clicks at the required torque setting.
- Simple Torque Adjustment: Adjusting the tightening torque is a breeze with the A10N3's conveniently located knob. Simply turn the knob to select the desired torque value on the handle's scale, and you're ready to go.
- Easy Calibration: Calibration is a breeze with the A10N3. Using a standard torque wrench tester like Tohnichi's DOTE4-G, you can easily calibrate the tool without the need for a joint simulator.
Technical Specifications
Model
A10N3
Type
Air torque nutrunner
Drive size
3/8'' square
Manufacturer
Tohnichi
Free Speed (RPM)
750
SKU
A10N3
Start Type
Push-to-Start
Style
Angle Head
Min Torque (Nm)
3
Max Torque (Nm)
10
Graduations (Nm)
0.1
Series
A3
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
