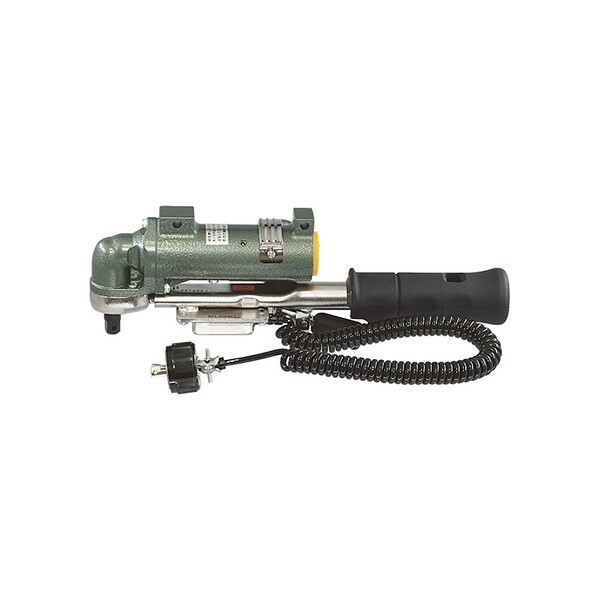

ALS50N3 | Semi-Automatic Airtork Torque Wrench with limit switch, 10 - 50 Nm
Overview
Introducing the Tohnichi ALS50N3 Semi-Automatic Airtork Torque Wrench with limit switch - a revolutionary tool that combines speed, precision, and efficiency in one powerful package. Engineered by Tohnichi, a leading name in the assembly industry, this innovative torque wrench takes your fastening tasks to the next level.
- Min Torque(Nm): 10
- Max Torque(Nm): 50
- Drive Size: 3/8'' square
- Free Speed(RPM): 750
- Head Type: Angle Head
- Start Type: Push-to-Start
- Manufacturer: Tohnichi
Features & Benefits
- Semi-Automatic Operation: Experience the best of both worlds with the semi-automatic functionality of this torque wrench. The air motor mounted on the wrench allows for fast provisional tightening, while the final tightening is performed manually with precision and control.
- Enhanced Efficiency: This tool replaces the conventional two-step tightening process, integrating the functions of a pneumatic tool and a click torque wrench into a single unit. The result? Increased efficiency and productivity in your assembly operations.
- Palm Button Control: The palm button engages the air motor, allowing for effortless provisional tightening. Once the desired provisional torque is reached, release the button and apply hand force until the torque wrench clicks at the required torque setting.
- Simple Torque Adjustment: Changing tightening torque is a breeze with the conveniently located knob on the handle. Simply turn the knob to adjust the scale and achieve the desired torque setting.
- Limit Switch Functionality (LS Version): The LS version of this torque wrench comes equipped with a limit switch, creating an error-proofing system when used with the CNA-4mk3 count checker (sold separately). When the torque set is achieved, the limit switch is triggered, confirming tightening compl
Technical Specifications
Model
ALS50N3
Type
Air torque nutrunner
Drive size
3/8'' square
Manufacturer
Tohnichi
Free Speed (RPM)
750
SKU
ALS50N3
Start Type
Push-to-Start
Style
Angle Head
Min Torque (Nm)
10
Max Torque (Nm)
50
Graduations (Nm)
0.5
Series
A3
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
