TDT600CN3-G | Torque Tester, 2 - 60 kgf cm
Overview

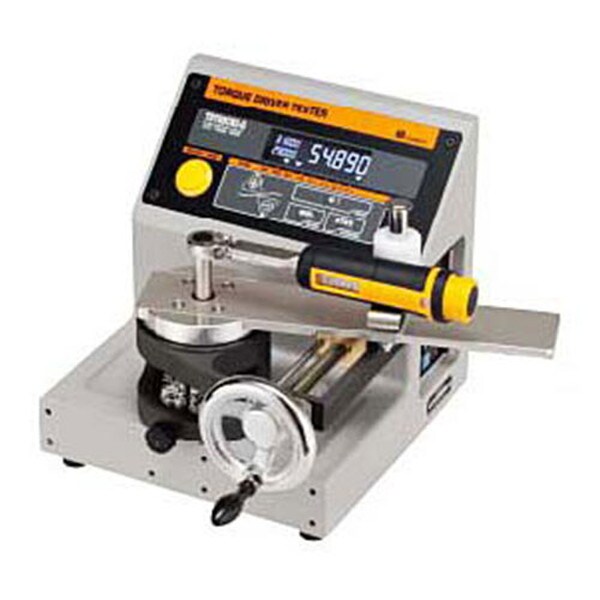

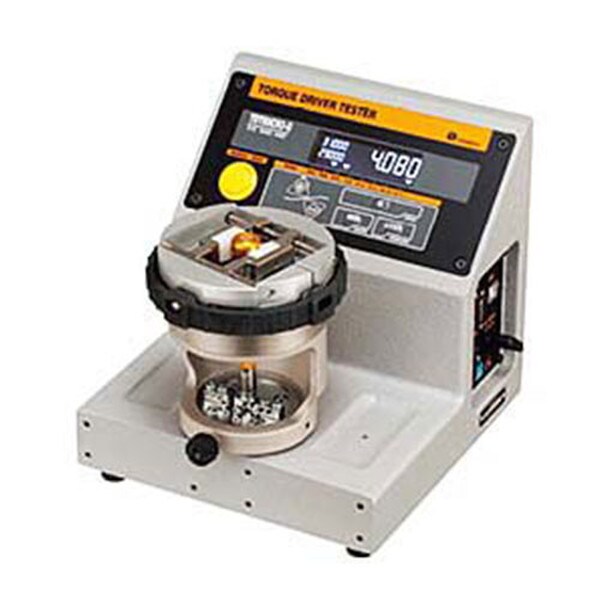

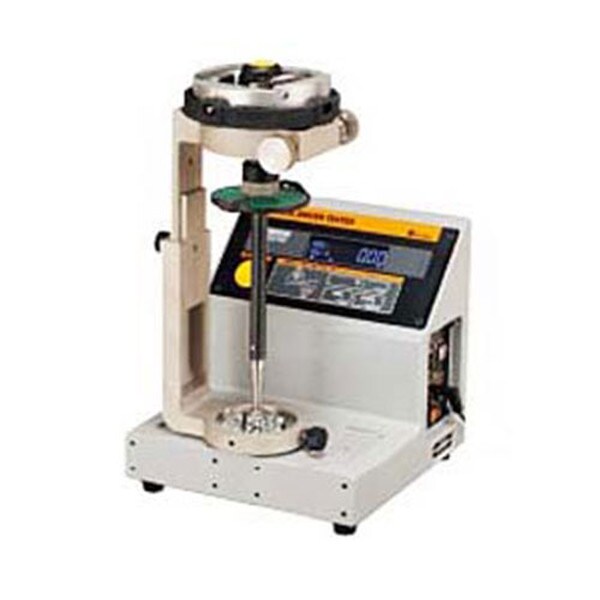

Introducing the Tohnichi TDT600CN3-G Torque Tester, a cutting-edge digital torque screwdriver tester designed to revolutionize your torque measurement processes. This highly accurate and reliable tester combines advanced features with user-friendly design, making it an indispensable tool for quality control and assembly professionals.
- Torque Range: 2 - 60 kgf cm
- Accuracy: +/-2% of reading
- Resolution: 0.01 kgf cm
- Overall Length: 230 mm
- Weight: 600 g
- Power Supply: AC 100 V, 50/60 Hz
- Drive: 1/4'' hex
Features & Benefits
- High Accuracy: With its high-accuracy digital display, the TDT600CN3-G Torque Tester provides precise and repeatable torque measurements, ensuring consistent and reliable results.
- Wide Torque Range: Covering a torque range of 2 - 60 kgf cm, this tester accommodates various applications, from light-duty to medium-duty fastening tasks.
- Pass/Fail Judgment: The TDT600CN3-G Torque Tester features a Pass/Fail judgment function, displaying results in three colors (white/red/blue) for easy recognition and efficient quality control.
- Loading Device: Equipped with a loading device, the tester eliminates measurement errors caused by human factors, ensuring accurate and objective results.
- Multiple Units of Measure: The tester offers multiple units of measure, allowing users to select the preferred unit (kgf cm, N m, in lb, ozf in) through the keypad setup.
Technical Specifications
Model
TDT600CN3-G
Min Torque (Ncm)
20
Max Torque (Ncm)
600
Type
Digital Torque Screwdriver Tester
Drive size
1/4'' hex
Wrench Type
Digital Torque Wrench Tester
Manufacturer
Tohnichi
SKU
TDT600CN3-G
Stock Code
2
Min Torque (In Lb)
2
Max Torque (In Lb)
50
Min Torque (Kgf Cm)
2
Max Torque (Kgf Cm)
60
Max Torque (In Oz)
800
Overall Length
230
Series
TDT3-G
Accuracy
±1%
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the TDT600CN3-G's torque range?
What type of application is the TDT600CN3-G best suited for?
The TDT600CN3-G Digital Torque Screwdriver Tester is ideal for use with a broad range of external transducers to test output of tools for torque verification.
How often does the TDT600CN3-G need to be calibrated?
Digital Torque Screwdriver Testers like the TDT600CN3-G should be checked and recalibrated every six to twelve months, or 5000 cycles; whichever comes first.
Does the TDT600CN3-G have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
