TF200N | Torque Tester, 0.5 - 200 NM
Overview

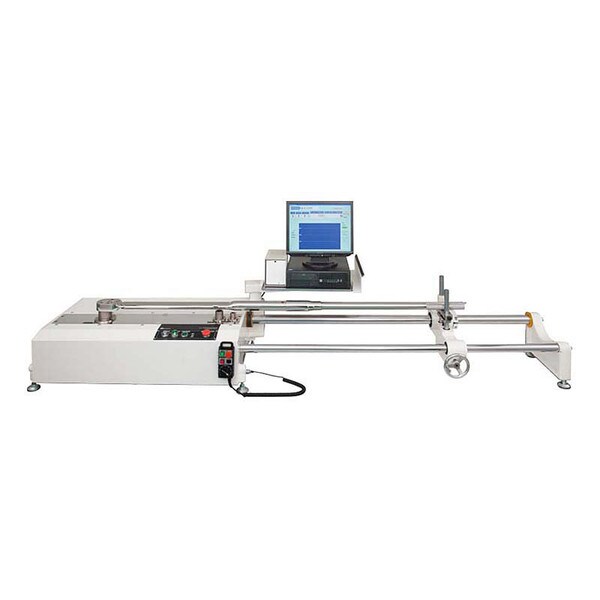

Introducing the Tohnichi TF200N Torque Tester, a cutting-edge digital tool designed to revolutionize your torque wrench calibration processes. This fully automatic tester combines precision and efficiency, making it an indispensable asset for calibration labs and quality-conscious professionals.
- Min Torque(Nm): 0.5
- Max Torque(Nm): 200
- Drive Size: 3/8'', 1/2'' square
- Overall Length(mm): 1860
- Manufacturer: Tohnichi
Features & Benefits
- Fully Automatic Operation: The TF200N tester boasts fully automatic testing, judging, and data processing capabilities, streamlining your calibration workflow and minimizing human errors.
- Central Torque Management System: With its central torque management system, this tester enables efficient tool management and provides comprehensive data analysis.
- Computer Connectivity: The tester can be easily connected to a PC, allowing you to view measurement information, register torque wrench test data, and initiate automatic measurements and judgments.
- Versatile Torque Range: Covering a wide torque range from 0.5 to 200 Nm, the TF200N tester accommodates various torque wrench capacities, ensuring adaptability to your specific requirements.
- Peripheral Equipment Compatibility: The TF200N tester supports the integration of peripheral equipment, expanding its functionality and accommodating your unique testing needs.
Technical Specifications
Model
TF200N
Type
Torque Wrench Tester
Drive size
3/8'', 1/2'' square
Wrench Type
Digital Torque Wrench Tester
Manufacturer
Tohnichi
Min Torque (Ft Lb)
0.5
SKU
TF200N
Stock Code
2
Max Torque (Ft Lb)
140
Min Torque (Nm)
0.5
Max Torque (Nm)
200
Overall Length
1860
Weight (lbs)
0.01
Max Torque (Kgf m)
20
Min Torque (Kgf m)
0.05
Series
TF
Accuracy
±1%
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the TF200N's torque range?
What type of application is the TF200N best suited for?
The TF200N Torque Wrench Tester is ideal for use with a broad range of external transducers to test output of tools for torque verification.
What is the accuracy or repeatability of the TF200N?
The TF200N accuracy / repeatability is ±1% of full scale.
How often does the TF200N need to be calibrated?
Torque Wrench Testers like the TF200N should be checked and recalibrated every six to twelve months, or 5000 cycles; whichever comes first.
Does the TF200N have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
