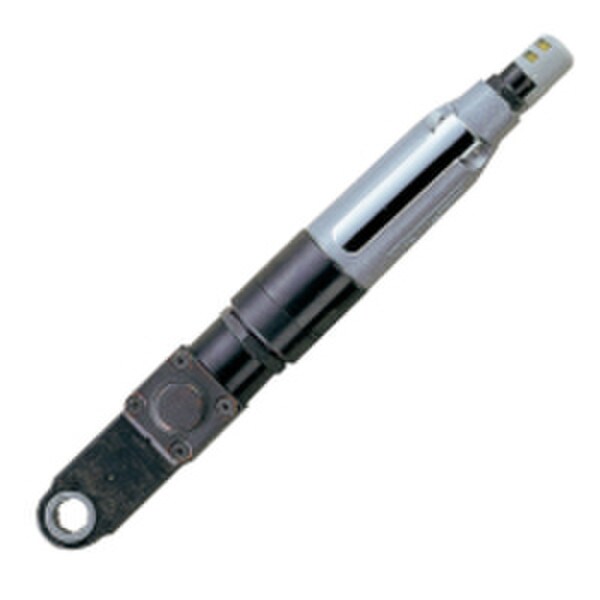

UGW-6N | Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size
Overview
URYU Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size
Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size, model# UGW-6N by URYU; available to order from Flexible Assembly Systems. Do you see this Air Geared Nutrunner available elsewhere for a lower price? Contact customer service on price matching!
UGW-6N by URYU
Designed for tubenut fastening, the UOW Series can transfer torque through a variety of options.
Features:
- Stall Type — Depending on the application requirements, the standard
- UOW Series will stall when torque resistance matches power output
- Mechanical Shut-off Type — For greater torque accuracy and less reaction impulse to the operator, the UOW-T Series incorporates a mechanical clutch to shut off the tool at the preset torque
- Electronically Monitored Type — For critical torque applications requiring monitoring or controlling of the fastening torque, the UOW-M
- Series utilizes a transducer to signal the clutch shut-off
- UOW series incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position
Features & Benefits
- UOW series will stall when torque resistance matches power output
- Incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position
- Utilizes a transducer to signal the cluth shut-off
- Mechanical Shut-Off for greater torque accuracy and less reaction impulse to the operator
Technical Specifications
Max Torque - Ft Lbs
13.3
Max Torque - Nm
18
Style
Inline
Free Speed - rpm
530
Type
Air Geared Nutrunner
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
