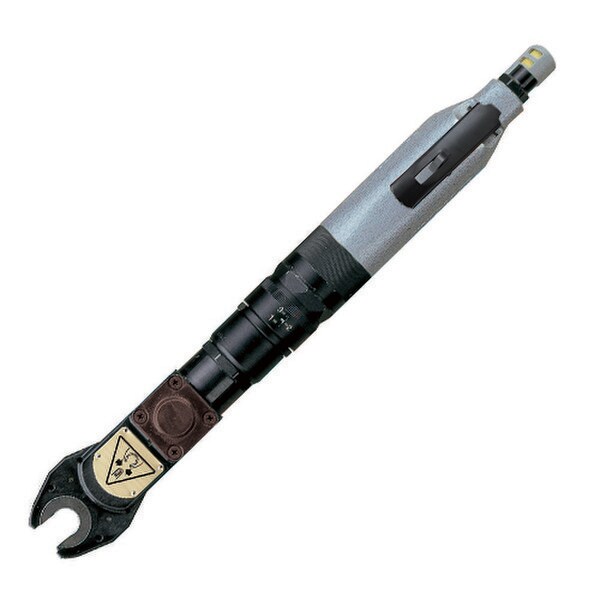

UOW-T60-30 | Inline Auto Shut Off Air Tubenut Nutrunner, 10 - 32 Nm, 5/8 - 1-3/16 in. socket size
Overview
URYU Inline Auto Shut Off Air Tubenut Nutrunner, 10 - 32 Nm, 5/8 - 1-3/16 in. socket size
Inline Auto Shut Off Air Tubenut Nutrunner, 10 - 32 Nm, 5/8 - 1-3/16 in. socket size, model# UOW-T60-30 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Tubenut Nutrunner available elsewhere for a lower price? Contact customer service on price matching!
UOW-T60-30 by URYU
Designed for tubenut fastening, the UOW Series can transfer torque through a variety of options.
Features:
- Stall Type — Depending on the application requirements, the standard
- UOW Series will stall when torque resistance matches power output
- Mechanical Shut-off Type — For greater torque accuracy and less reaction impulse to the operator, the UOW-T Series incorporates a mechanical clutch to shut off the tool at the preset torque
- Electronically Monitored Type — For critical torque applications requiring monitoring or controlling of the fastening torque, the UOW-M
- Series utilizes a transducer to signal the clutch shut-off
- UOW series incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position
Features & Benefits
- Stall type open-end wrench
- All-gear drive mechanism ensure long life and silent operation
- Recommended Air Pressure: 85 psi
- Provides smooth and easy operation and automatic release of socket back to preset open position with unique one-hand, two-step throttle lever
Technical Specifications
Min Torque - Ft Lbs
7.4
Max Torque - Ft Lbs
23.7
Min Torque - Nm
10
Max Torque - Nm
32
Clutch Type
Auto Shut Off
Style
Inline
Free Speed - rpm
130
Type
Air Tubenut Nutrunner
Technical Documents
AIMCO UOW socket sizes Chart (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
