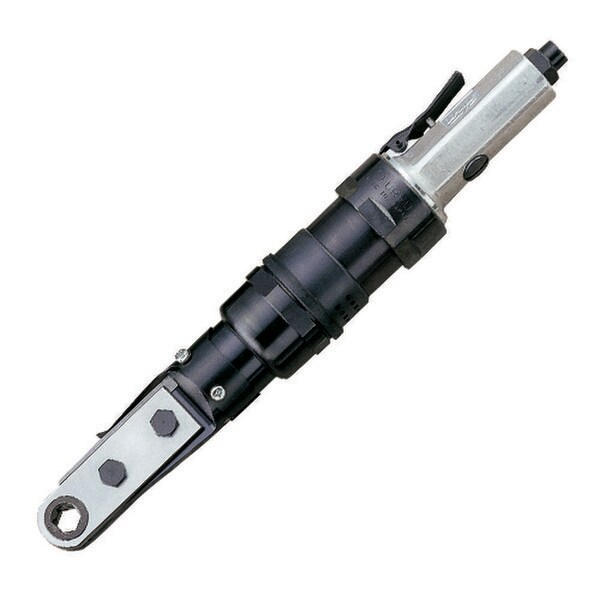

URW-9N | Inline Ratchet Wrench, 31 Nm, 7/16 - 9/16 in. socket size
Overview
URYU Inline Ratchet Wrench, 31 Nm, 7/16 - 9/16 in. socket size
Inline Ratchet Wrench, 31 Nm, 7/16 - 9/16 in. socket size, model# URW-9N by URYU; available to order from Flexible Assembly Systems. Do you see this Ratchet Wrench available elsewhere for a lower price? Contact customer service on price matching!
URW-9N by URYU
Designed to set flush over the fastener head, the URW Series is ideal for narrow fastening spaces. Motor torque is transferred from a gear driven, dual lobed cam that pushes a spring loaded push rod, rotating the socket one tooth at a time. A wide variety of socket sizes, head thicknesses, and tool lengths allow the URW Series access to many difficult applications.
Features & Benefits
- Ideal for Many Difficult Applications Including Narrow Fastening Spaces
- Wide variety of socket sizes, head thickness and tool lengths allow access to many difficult applications
- Recommended Air Pressure: 85 psi
- Reverse rotation obtained by simply turning tool over
Technical Specifications
Max Torque - Ft Lbs
22.9
Max Torque - Nm
31
Style
Inline
Free Speed - rpm
140
Type
Ratchet Wrench
Technical Documents
AIMCO URW socket sizes Chart (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
