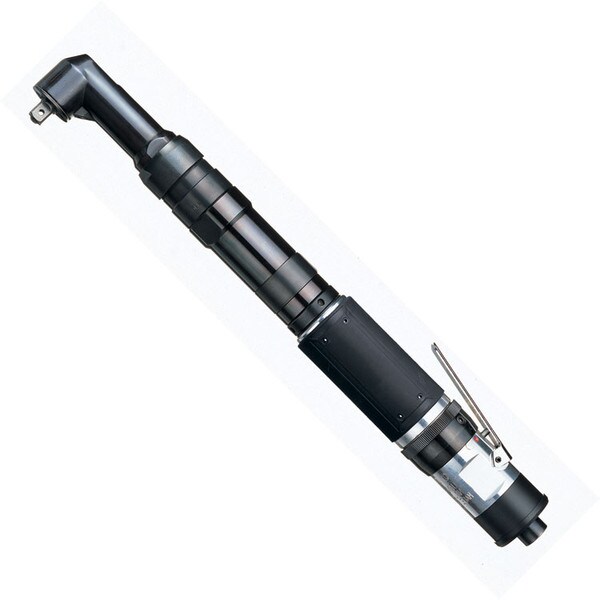

UAN Series
Overview
- High power to weight ratio for higher productivity
- Wide variety of speeds and torque ranges to match your application
- Easily adjusts to forward or reverse rotation with smooth rolling selector
- Torque adjusts from outside of tool with a Phillips screwdriver
- Delivers minimal torque reaction with instant shut-off
- Light weight
- Low noise levels with exhaust located at rear of tool
- Fewer parts and higher reliability than previous models
- Easily lubricate the angle head bevel gears without disassembling the tool with grease-cock feature
- ISO 5393 testing reveals a 6-sigma combined capability of less than 20% on all models
- Mechanical clutch offers precise torque control regardless of joint rate *Provides greater precision, especially on hard joints, with low inertia design
- High power allows for torque repeatability on soft joints and prevailing torque applications
- A Poka-Yoke option is available for bolt counting or error-proofing (Use in conjunction with UTM-1100 fastener counter)
- Recommended Air Pressure: 85 psi
Features & Benefits
- Torque Range: 4.3 to 44.2 Ft Lb
- Styles Available: Angle
- From $1,882 up to $2,264
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
