Overview

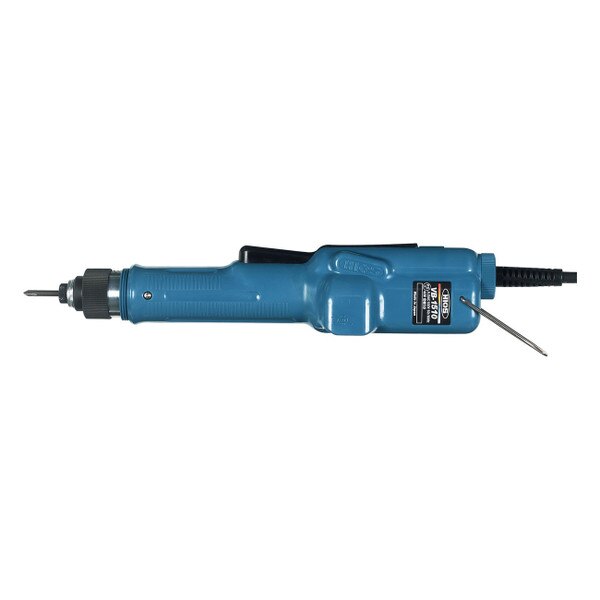

Introducing the HIOS VB-1510 Electric Torque Screwdriver, a remarkable assembly tool that combines power, precision, and efficiency. Engineered by HIOS, this electric torque screwdriver is designed to streamline your fastening tasks with its advanced features and user-friendly operation.

  • Min Torque(Nm): 0.25
  • Max Torque(Nm): 1.5
  • Drive Size: H4
  • Free Speed(RPM): 970
  • Voltage: 100V
  • Start Type: Lever Start
Back

Features & Benefits

  • Lever Start Mechanism: The VB-1510 employs a lever start mechanism, providing precise control and ease of use during assembly processes.
  • Versatile Torque Range: With a torque range of 0.25 to 1.5 Nm, this electric screwdriver caters to a wide spectrum of fastening applications, ensuring accurate and consistent results.
  • Direct AC Connection: The VB-1510 can be directly connected to an AC outlet, eliminating the need for an external power supply and enhancing portability.
  • Energy Efficiency: Equipped with a cutting-edge brushless motor, the VB-1510 operates with exceptional energy efficiency, reducing power consumption by up to 50% compared to traditional electric screwdrivers.
Back

Technical Specifications

Series
VB
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H4
Free Speed (RPM)
970
Torque Range (in lb)
2.2 - 13.3
Torque Range (Nm)
0.25 - 1.5
Torque Range (kgf cm)
3 - 15.3
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the VB-1510?

The VB-1510 has a torque range from 2.2 to 13.3 in lbs (0.25 - 1.5 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the VB-1510, are most commonly used for medium to heavy assembly applications where precise torque control is required.
The VB-1510 can go up to 970 rpm.

There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
