VB-1820 | 100V Electric Torque Screwdriver, 0.4 - 1.8 Nm, Lever Start

(0)No Reviews yet
$930.77
$961
$30.230000000000018
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

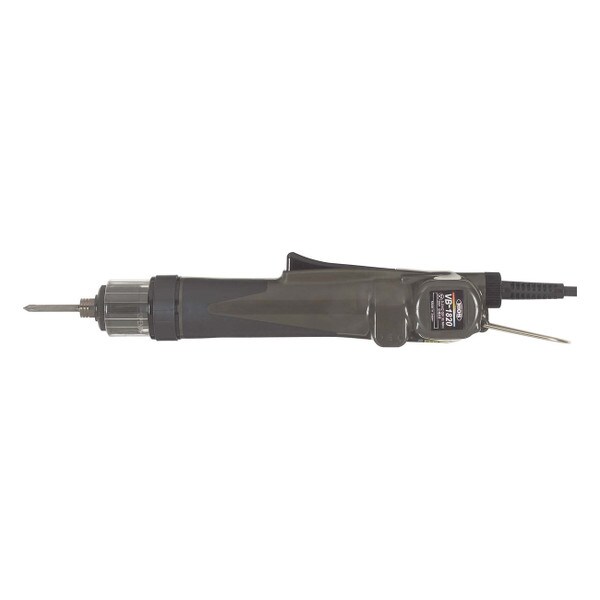

Introducing the HIOS VB-1820 Lever Electric Torque Screwdriver, a powerful and efficient assembly tool designed to streamline your fastening processes. This 100V electric torque screwdriver combines precision, durability, and user-friendly features to take your assembly operations to the next level.

  • Min Torque(Nm): 0.4
  • Max Torque(Nm): 1.8
  • Drive Size: H5
  • Free Speed(RPM): 2000
  • Voltage: 100V
  • Start Type: Lever Start
Back

Features & Benefits

  • Lever Start Mechanism: The VB-1820 features a convenient lever start mechanism, allowing for effortless operation and precise control during fastening tasks.
  • Wide Torque Range: With a torque range of 0.4 to 1.8 Nm, this electric torque screwdriver caters to a variety of applications, ensuring accurate and consistent fastening results.
  • Direct AC Connection: This electric torque screwdriver can be directly connected to an AC outlet, eliminating the need for additional power supplies or bulky transformers.
  • Energy Efficiency: Equipped with a cutting-edge brushless motor, the VB-1820 operates with exceptional energy efficiency, reducing power consumption by up to 50% compared to traditional electric screwdrivers.
Back

Technical Specifications

Series
VB
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H5
Free Speed (RPM)
2000
Torque Range (in lb)
3.5 - 15.9
Torque Range (Nm)
0.4 - 1.8
Torque Range (kgf cm)
4 - 18.4
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the VB-1820?

The VB-1820 has a torque range from 3.5 to 15.9 in lbs (0.4 - 1.8 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the VB-1820, are most commonly used for medium to heavy assembly applications where precise torque control is required.
The VB-1820 can go up to 2000 rpm.

There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
