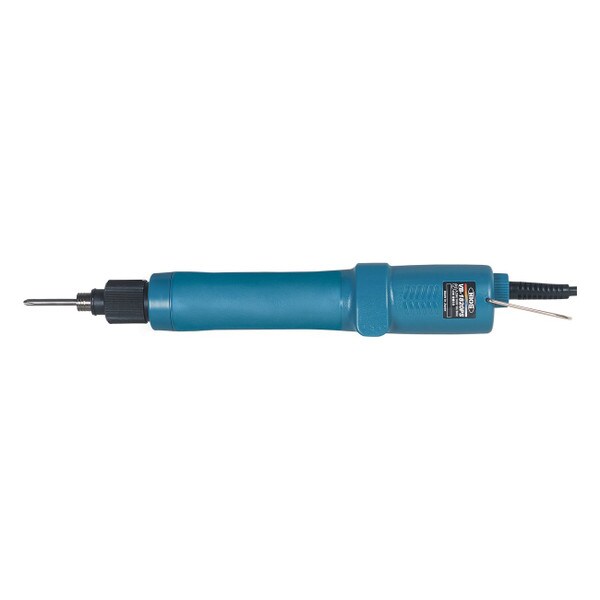

VB1820PSX-120 | VB-1820PS | 100V Electric Torque Screwdriver, 0.4 - 1.8 Nm, Push-to-Start
Overview
Introducing the HIOS VB-1820PS Electric Torque Screwdriver, a powerful and versatile assembly tool designed to enhance your precision fastening processes. Manufactured by HIOS, this electric torque screwdriver combines advanced features, durability, and ease of use to streamline your assembly tasks.
- Min Torque(In Lb): 3.5
- Max Torque(In Lb): 15.9
- Drive Size: 1/4'' hex
- Free Speed(RPM): 2000
- Voltage: 100V
- Start Type: Push-to-Start
Features & Benefits
- Push-to-Start Mechanism: The VB-1820PS features a convenient push-to-start mechanism, allowing for effortless operation and precise control during assembly processes.
- Energy Efficient: Equipped with a brushless motor, the VB-1820PS operates efficiently, reducing energy consumption by up to 50% compared to traditional electric screwdrivers.
- Auto Shut-Off Function: The screwdriver is equipped with an auto shut-off function, preventing overtightening and ensuring optimal fastening results.
- Supports Large Equipment Assembly: The VB series, which includes the VB-1820PS, is capable of handling screw fastening tasks on large equipment, making it an ideal choice for heavy-duty assembly applications.
Technical Specifications
Series
VB
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H5
Free Speed (RPM)
2000
Torque Range (in lb)
3.5 - 15.9
Torque Range (Nm)
0.4 - 1.8
Torque Range (kgf cm)
4 - 18.4
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the VB-1820PS?
What type of application is the VB-1820PS best suited for?
Electric Screwdrivers like the VB-1820PS, are most commonly used for medium to heavy assembly applications where precise torque control is required. The VB-1820PS is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the VB-1820PS?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the VB-1820PS have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
