LUM Pneumatic Torque Screwdrivers

Atlas Copco's LUM Screwdrivers are the workhorses of their pneumatic screwdriver line-up. The LUM series combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity.

Back

Overview

LUM models have a fast and accurate shut-off clutch for smooth performance and high quality tightening.
They are suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. Electro Static Discharge (ESD) approved models and RE models are available in this range. RE models enable a signal to be received from the tool, in order to control batch count. All RE models need to be combined with an external RE control system. Shut-off tools are the best choice for machine screws, thread-rolling screws and thread-forming screws for plastic.

Designed with ergonomics in mind.
Supplies the accuracy demand for each application.
Certified for torque accuracy throughout its entire service life.
Easy to service and is supplied with comprehensive documentation.
Built to last in industrial environments.
Based on many years of experience in tool design.
Backed by a technical support organization unequaled in the industry.

*RE reporting models are available, designated with suffix –RE. Soft stop options are available, designated with the suffix "SS".
*Front end 12.5 mm (4210 3918 01) included.
*Optional front end 21 mm (4210 3918 02).
*Air inlet thread M5. Nipple and coupling included accessory for all LUM 02 models, hose size diameter 6 mm.
*ESD approved: LUM10/12/22 SR/PR
*All mod els: Are reversible and have quick change chuck.

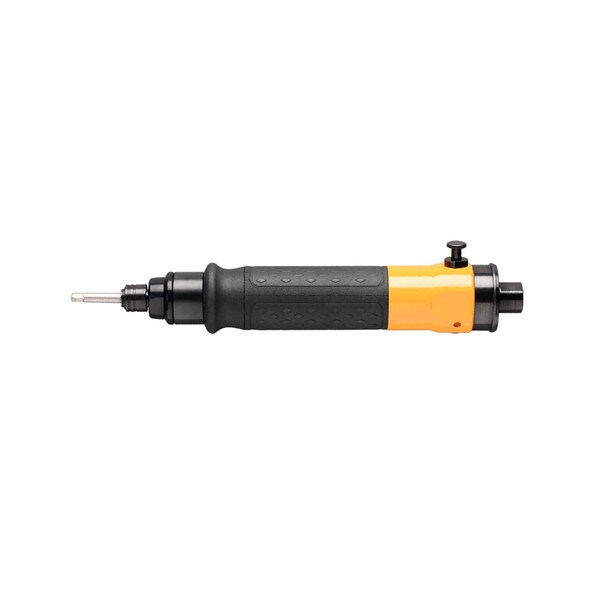

*SR-models have ring reverse control.

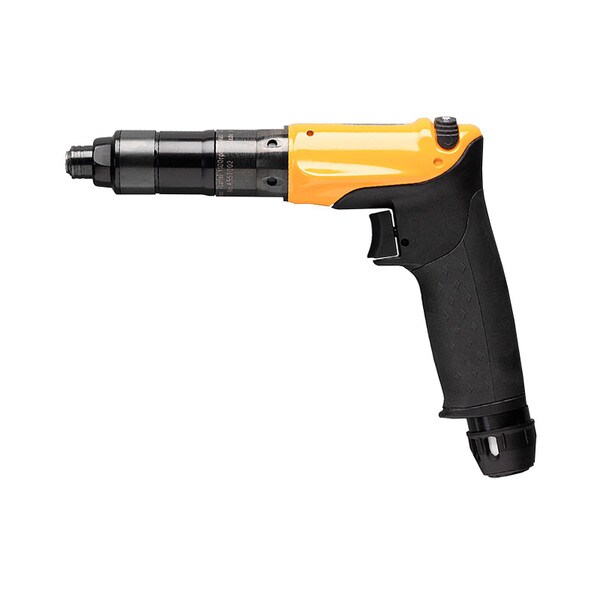

*PR-models have push button reverse.
