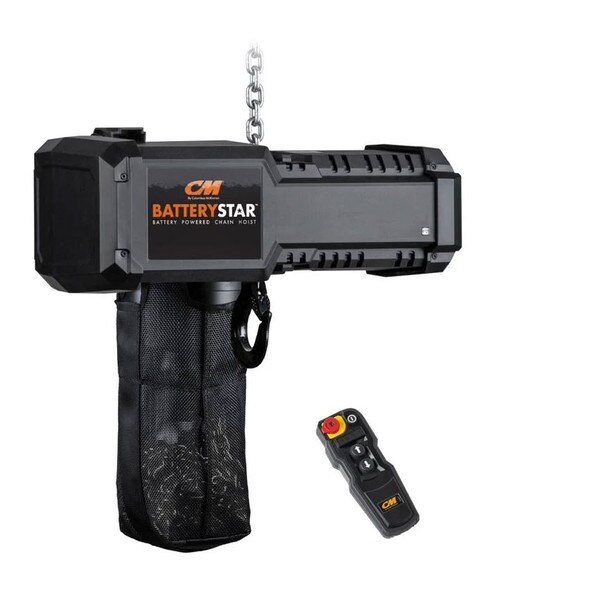

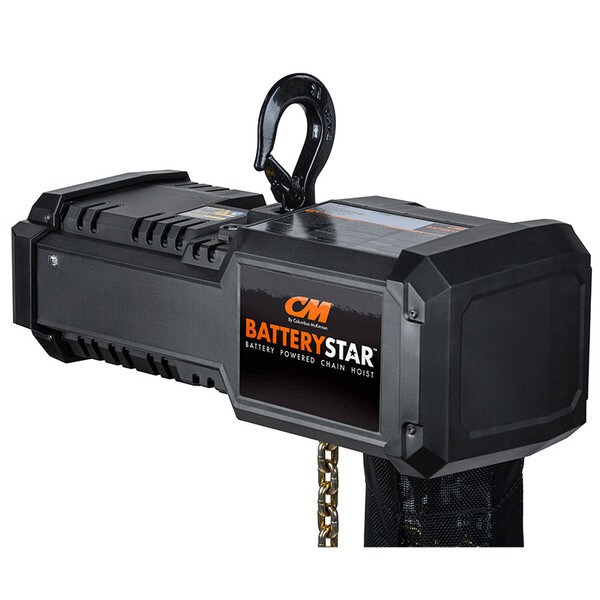

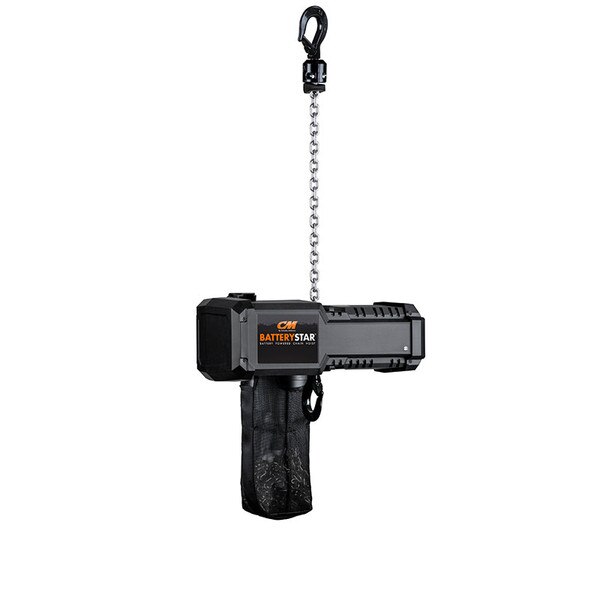

BCC1008S202US | Battery Chain Hoist, 1 ton capacity, 20 ft, 8 fpm, Swivel Latch
Overview
CM's BCC1008S202US BatteryStar, Battery Powered Chain hoist is built with industry-leading technology from Columbus McKinnon and powered by Milwaukee Tool's M18 Red Lithium-Ion Battery.
Note: BCC1008S202US will be available to ship in Fall 2024. Battery/Charger not included
Features & Benefits
- Operates specifically with a Milwaukee Tool brand M18 battery, making it ideal for temporary applications or areas of a facility or job site where electricity is unavailable or difficult to reach
- Weighing less than 50 lbs. when 20 feet of chain is included, the BatteryStar is compact and lightweight for easy portability within a facility or to a job site.
- Inverted operation eliminates the need to carry the weight of the hoist up to the anchor point. Just carry the hook up to the anchor point and let the hoist lift itself and the load up.
- Hoist can be used in either typical mounting orientation with the hoist body attached to the anchor point or inverted
- Electronic clutch and secondary mechanical clutch provide dual protection from hoist overload.
- Integrated limit switch for the highest and lowest hook position considerably extends the service life of the slip clutch, motor, and gearbox
- FEM 1Cm rated. Third-party certified to UL and CSA requirements
Technical Specifications
Model
BCC1008S202US
Type
Battery Chain Hoist
Manufacturer
CM
SKU
BCC1008S202US
Battery Model
48-59-1200
Weight (lbs)
44
Series
BatteryStar
Capacity (tons)
1
Lift (ft)
20
Technical Documents
CM Battery Star Hoist Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
