23615601000/00 | Hydro/Pneumatic Setting Tool, 21 Kn, M3 - M12

(0)No Reviews yet
$4,387.50
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

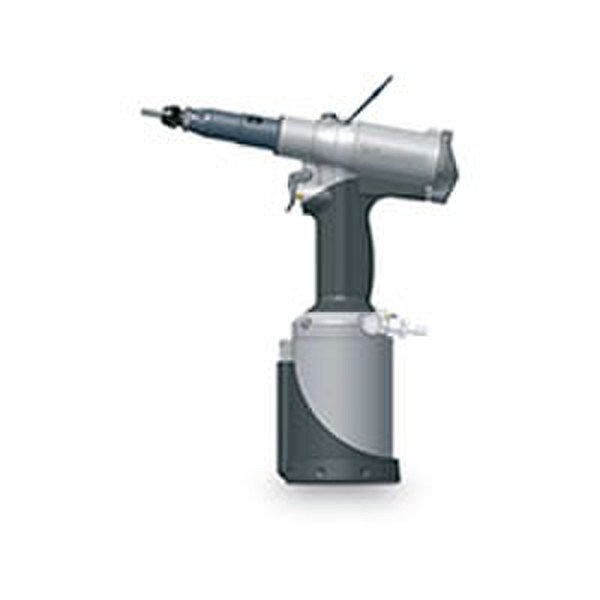

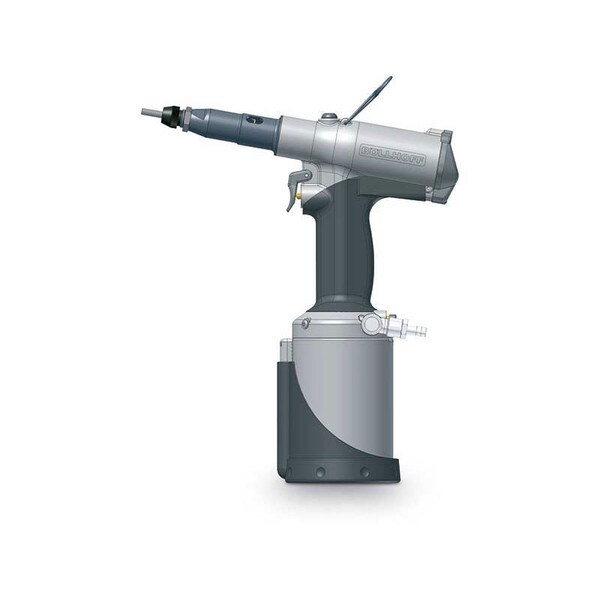

Rivkle Hydro/Pneumatic Setting Tool, 21 Kn, M3 - M12

Hydro/Pneumatic Setting Tool, 21 Kn, M3 - M12, item# 23615601000/00 by Rivkle; available to order from Flexible Assembly Systems.

Versatile and flexible tool with a good ergonomic design.

This force-controlled rivet tool is used to set RIVKLE® Standard blind rivet nuts made of aluminium (M5–M12), steel (M4–M10) and stainless steel (M3–M8).

Specifications
  • Weight: 2.2 kg
  • Maximum setting force: 21 kN
  • Maximum stroke: 7 mm
  • Required air pressure: 5.5–6.5 bar
  • Air consumption: 8 litres

Note:Mandrels and anvils sold separately.

Back

Features & Benefits

  • Hydro/Pneumatic Setting Tool
  • This setting tool has an M3-M12 diameter.
Back

Technical Specifications

Type
Setting Tool
Style
Hydro/Pneumatic
Pull Force (Kn)
21
Diameter
M3 - M12
Weight (kg)
2.2
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
