23615801000/00 | Hydro/Pneumatic Setting Tool, 14.5 Kn, M3 - M10

(0)No Reviews yet
$5,100.00
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

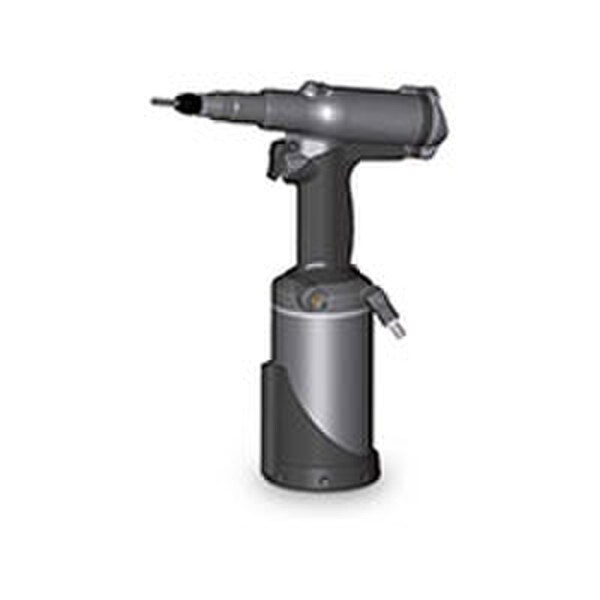

Rivkle Hydro/Pneumatic Setting Tool, 14.5 Kn, M3 - M10

Hydro/Pneumatic Setting Tool, 14.5 Kn, M3 - M10, item# 23615801000/00 by Rivkle; available to order from Flexible Assembly Systems.

Versatile and flexible rivet tool with amplified stroke for RIVKLE PN blind rivet nuts.

This force-controlled setting tool is used to set RIVKLE PN blind rivet nuts made of steel (M4–M8).

Specifications
  • Weight: 2.2 kg
  • Maximum setting force: 14.5 kN
  • Maximum stroke: 14 mm
  • Required air pressure: 5.5–6.5 bar
  • Air consumption: 8 litres

Note:Mandrels and anvils sold separately.

Back

Features & Benefits

  • Hydro/Pneumatic Setting Tool
  • This setting tool has an M3-M10 diameter
Back

Technical Specifications

Type
Setting Tool
Style
Hydro/Pneumatic
Pull Force (Kn)
14.5
Diameter
M3 - M10
Weight (kg)
2.2
