CP-2E | Compact, Micro Tweezers Station, 230V
Overview

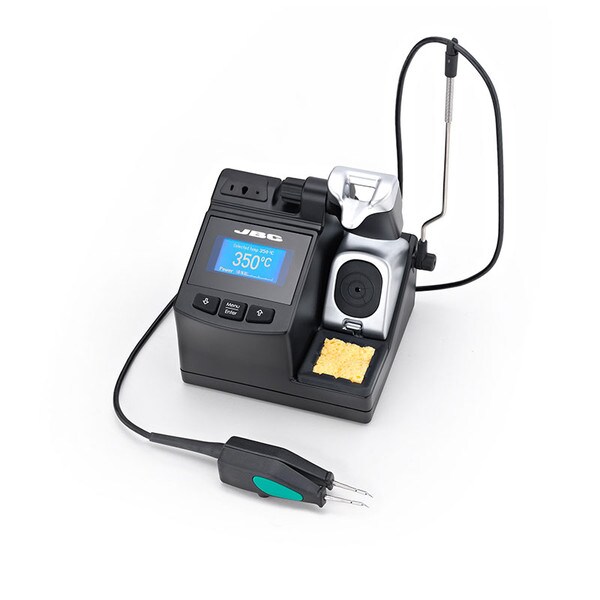

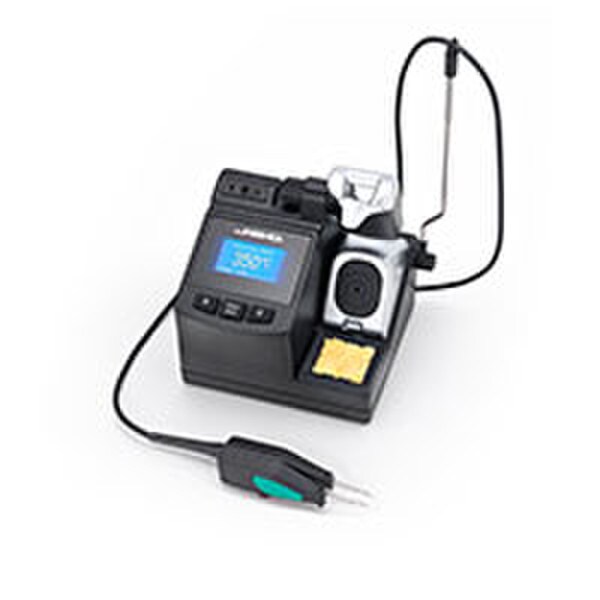

JBC CP-2E
Compact, Micro Tweezers Station, 230V
The CP is a soldering and desoldering station for small and medium SMD components.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
It features a USB connector to update software, create graphs and manage parameters from a PC.
Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.
CP works with the lightest and ergonomic PA120 microtweezers and the C120 cartridges.
Features & Benefits
- Using the menu you can personalize over 20 parameters to help manage the soldering process.
- It features a USB connector to update software, create graphs and manage parameters from a PC.
- Use the integrated wiper to remove excess solder from the tip.
- Complete cleaning system with an antisplash membrane to keep the work area clean.
Technical Specifications
Temperature Range - fahrenheit
190 - 840
Permissible ambient temperature - celsius
10 - 40
Voltage
230V
Input Fuse
1A
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Dimensions -
150 x 175 x 145
Weight - lbs
5.95
ESD Compliant
Yes
Technical Documents
JBC CP E Compact Micro Tweezers Station Manual (PDF)- JBC Compact Soldering Stations Brochure (PDF)
- JBC Procedure for System Adjustment (PDF)
- JBC Warranty Information (PDF)
