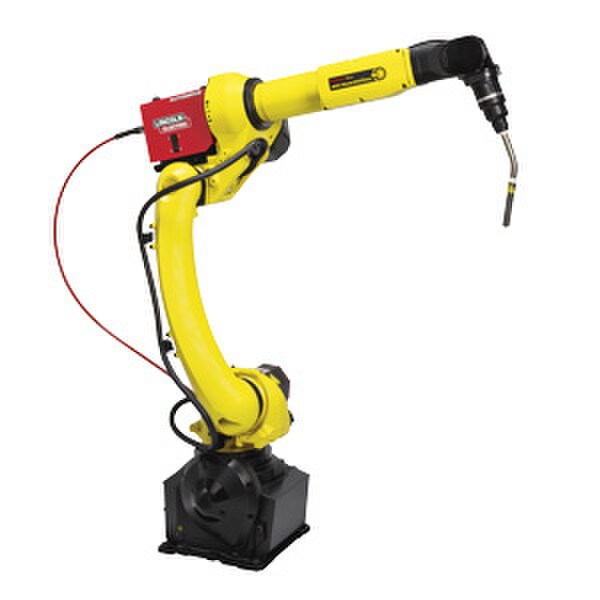

ARC Mate 100iD/10L | Arc Welding Robot, 10 kg, 1636 mm, 6 axes

(0)No Reviews yet

The new generation of arc welding robots stands out based on its productivity advancements and rapid integration times. The long arm model of the ARC Mate 100iD series features outstanding axes speed and ultimate precision.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Back

Features & Benefits

  • Made specifically for narrow installations, this highly versatile arc welding robot can work on relative large parts thanks to its large horizontal stroke and can also be installed upside down or angle mounted.
  • fully integrated welding hosepack and utility cables
  • Sensor/camera cables, air pipes and other utilities and services are routed through the robot's hollow arm, wrist and body, for easy and reliable routing
Back

Technical Specifications

Application
Arc Welding, Material Removal
Type
Arc Welding Robot
Manufacturer
FANUC
SKU
ARC Mate 100iD/10L
Reach
1636 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Payload
10 kg
