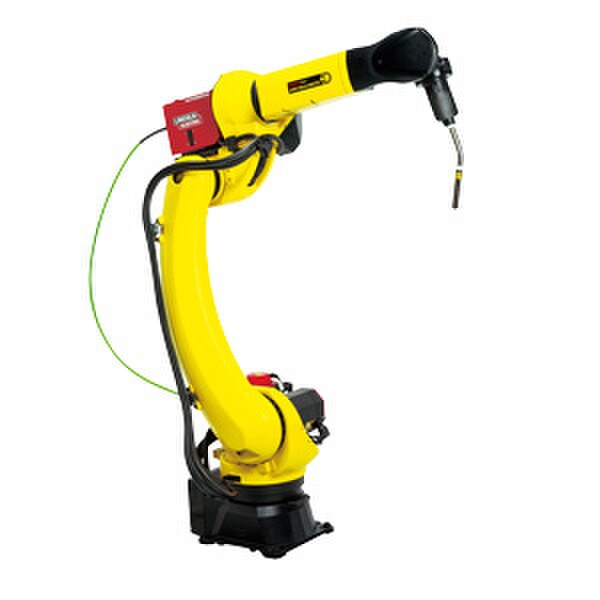

ARC Mate 120iD | Arc Welding Robot, 25 kg, 1831 mm, 6 axes

(0)No Reviews yet

An ideal all-round welding robot, the ARC Mate 120iD’s slim articulated design means it excels at welding in narrow jigs. It features a new drive train for significantly higher axis speeds and, thanks to its high rigidity, boasts a repeatability of ± 0.02 mm

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Back

Features & Benefits

  • For maximum operating flexibility, it has a large working envelope and can reach in very close to its own base
  • Fully integrated welding hosepack
  • Large 57 mm diameter hollow wrist and hollow arm for trouble-free cable routing and maximum snag-free access.
  • Slim curved J2 arm Specially designed for welding in narrow and difficult to reach spaces.
Back

Technical Specifications

Application
Arc Welding, Material Removal
Type
Arc Welding Robot
Manufacturer
FANUC
SKU
ARC Mate 120iD
Reach
1831 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Payload
25 kg
