90150 | 090150 | ESD Electric Torque Screwdriver, 50 - 440 Ncm, 1/4'' hex
Overview

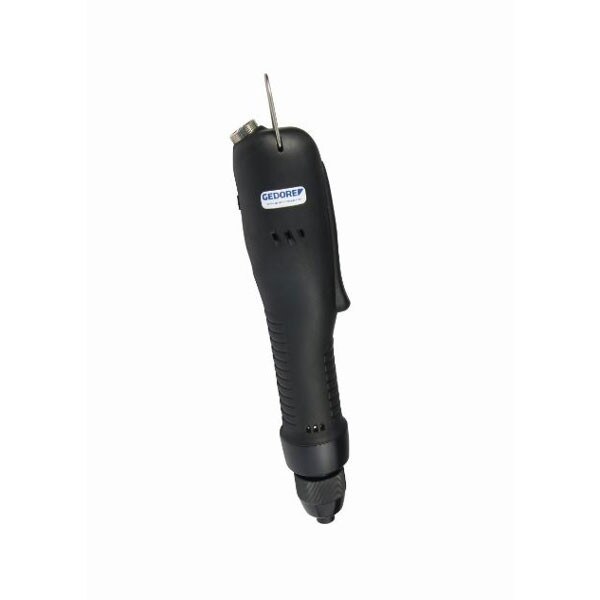

Introducing the Gedore K 450 ESD Electric Torque Screwdriver, a remarkable assembly tool that combines precision, efficiency, and safety. Designed with ESD compliance in mind, this electric torque screwdriver minimizes the risk of electrostatic discharge damage, making it an ideal choice for handling electronic components.
- Torque Range: 50 - 440 Ncm
- Drive Size: 1/4'' hex
- Speed: 550 rpm
- Design: Inline
Features & Benefits
- ESD Compliance: The K 450 ESD Electric Torque Screwdriver is ESD compliant, ensuring safe and secure handling of electronic components, minimizing the risk of electrostatic discharge damage.
- Accuracy and Consistency: Engineered for accuracy and consistency, this electric torque screwdriver delivers precise torque application, ensuring reliable and repeatable results in high-volume production environments.
- Long Tool Life and Effective Production: Built to withstand rigorous use, this electric torque screwdriver offers long tool life, ensuring effective and reliable production in demanding manufacturing environments.
- Improved Production Efficiency: With its efficient performance, the Gedore K 450 ESD Electric Torque Screwdriver helps streamline assembly processes, increasing productivity and reducing production time.
Technical Specifications
Type
Electric Torque Screwdriver
Min Torque (Ncm)
50
Max Torque (Ncm)
440
Min Torque (in lb)
4.3
Max Torque (in lb)
39
Drive Type
1/4'' hex
Free Speed (rpm)
550
Repeatability
+/- 10%
ESD Compliant
Yes
Weight (lbs)
1.3117489
Technical Documents
Gedore Torque Tools Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the 90150?
What type of application is the 90150 best suited for?
Electric Torque Screwdrivers like the 90150, are most commonly used for medium to heavy assembly applications where precise torque control is required. The 90150 is an Inline model.
How do I set the torque on the 90150?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the 90150 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
