36560 | 036560 | Rotary Torque Sensor, 18 - 180 Nm,
Overview

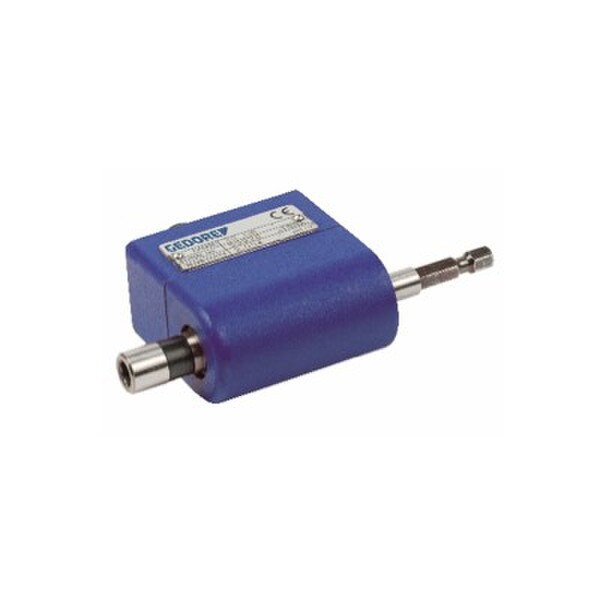

Gedore Rotary Torque Sensor, 18 - 180 Nm,
Gedore Rotary Torque Sensor, Model XR 180 SD, sku# 036560, available to order from Flexible Assembly Systems. Do you see this Rotary Torque Sensor available elsewhere at a lower price? Contact Customer Service to Price Match!
These Sensors provide highly accurate torque measurement for Hand and Power Torque Tools. They can be used in conjunction with Gedore's CAPTURE Display or with your current Torque Analyser. Connect between tool and joint, to measure the actual torque being applied from the joint to the fastener.
Technical Specifications
Type
Rotary Torque Sensor
Min Torque (Nm)
18
Max Torque (Nm)
180
Free Speed (rpm)
2500
Weight (kg)
0.43
Weight (lbs)
0.195454545454545
Dimensions
58 x 87 x 82.5 mm
