BLG5000H4-ZR1 | Electric Screwdriver with built-in screw/pulse counter, 1.7 - 10 in lbs, H4 drive
Overview

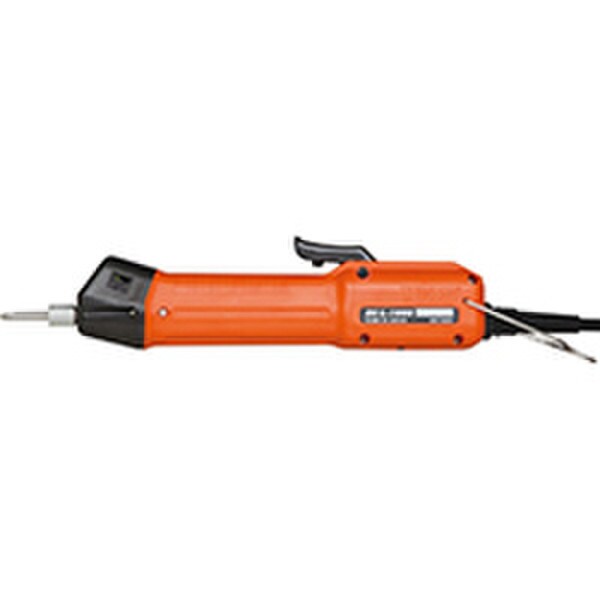

Introducing the HIOS BLG5000H4-ZR1 Electric Screwdriver, a powerful and versatile tool designed to revolutionize your assembly operations. Engineered by HIOS, this electric screwdriver combines precision, efficiency, and advanced features to streamline your fastening tasks.
- Min Torque(In Lb: 1.7
- Max Torque(In Lb: 10
- Drive Size: 1/4'' hex
- Free Speed(RPM): 1,200
- Start Type: Lever or Push
- Manufacturer: HIOS
Features & Benefits
- Built-in Screw/Pulse Counter: The BLG5000H4-ZR1 comes equipped with a built-in screw/pulse counter, enabling accurate monitoring and control of your fastening processes. This feature enhances productivity and ensures consistent results.
- Versatile Torque Range: With a torque range from 1.7 to 10 in lbs, this electric screwdriver adapts to various fastening applications, providing flexibility and accuracy.
- Lever or Push Start: The BLG5000H4-ZR1 offers two convenient starting options - lever or push - allowing users to select the preferred method based on their specific needs.
- H4 Drive Size: The H4 drive size is optimized for small and medium-sized screws, making it suitable for a wide range of assembly tasks.
Technical Specifications
Series
BLG
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushless
Drive size
H4
Torque Range (in lb)
1.7 - 10
Torque Range (Nm)
0.2 - 1.2
Torque Range (kgf cm)
2 - 12
Technical Documents
HIOS BLG Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the BLG5000H4-ZR1?
What type of application is the BLG5000H4-ZR1 best suited for?
Electric Screwdrivers like the BLG5000H4-ZR1, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How do I set the torque on the BLG5000H4-ZR1?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the BLG5000H4-ZR1 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
