CL2000H4-ESD | Electric Screwdriver, Lever Start, 0.17 - 1.7 in lbs, H4 drive, ESD

(0)No Reviews yet
$660.00
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

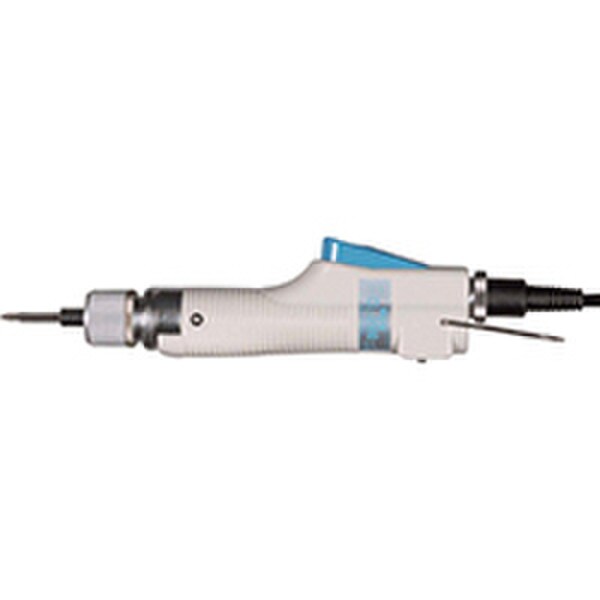

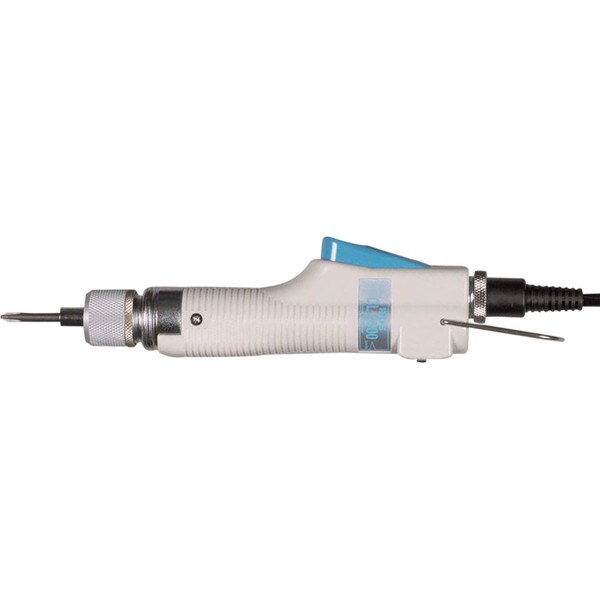

Introducing the HIOS CL2000H4-ESD Electric Screwdriver, a compact and lightweight assembly tool designed for precision tasks in ESD-sensitive environments. Manufactured by HIOS, this electric screwdriver combines advanced features with an ergonomic design to enhance productivity while minimizing the risk of electrostatic discharge.

  • Min Torque(In Lb: 0.17)
  • Max Torque(In Lb: 1.7)
  • Drive Size: H4
  • Free Speed(RPM): 490 - 680
  • Voltage: 110V
  • Start Type: Lever Start
Back

Features & Benefits

  • ESD-Safe Design: The CL2000H4-ESD is specifically crafted to meet the stringent requirements of ESD-sensitive environments, ensuring the safety of electronic components during assembly operations.
  • Lever Start Mechanism: The convenient lever start mechanism allows for precise control and effortless operation, reducing user fatigue during extended assembly tasks.
  • H4 Drive Size: The H4 drive size is optimized for small and intricate screws commonly used in electronics assembly, ensuring a secure and precise fit.
  • Versatile Torque Range: With a torque range from 0.17 to 1.7 in lbs, this electric screwdriver caters to a wide variety of delicate fastening applications, providing flexibility and accuracy.
Back

Technical Specifications

Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
H4
Free Speed (RPM)
490 - 680
Torque Range (in lb)
0.17 - 1.7
Torque Range (Nm)
0.02 - 0.2
Torque Range (kgf cm)
0.2 - 2
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the CL2000H4-ESD?

The CL2000H4-ESD has a torque range from 0.17 to 1.7 in lbs (0.02 - 0.2 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the CL2000H4-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required.
The CL2000H4-ESD can go up to 680 rpm.

There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
