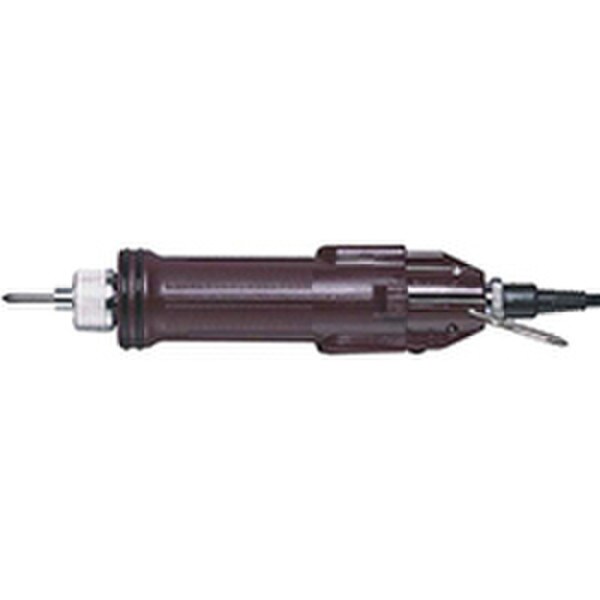

CL4000PSX-ESD | Electric Screwdriver, Push-to-Start, 0.3 - 1.7 in lbs, 1/4 in. Hex drive, ESD
Overview
Introducing the HIOS CL-4000PSX-ESD Electric Screwdriver, a cutting-edge assembly tool that combines precision, efficiency, and ESD-safe design. Engineered by HIOS, this electric screwdriver is the perfect choice for professionals working with sensitive electronic components.
- Min Torque(In Lb: 0.3
- Max Torque(In Lb: 1.7
- Drive Size: 1/4'' Hex
- Free Speed(RPM): 690 - 1000
- Start Type: Push-to-Start
- Manufacturer: HIOS
Features & Benefits
- ESD-Safe Construction: Crafted with ESD-safe materials, this electric screwdriver minimizes the risk of electrostatic discharge, ensuring the safety of delicate electronic components during assembly processes.
- Precise Torque Control: With a torque range from 0.3 to 1.7 in lbs, the CL-4000PSX-ESD allows for accurate and controlled fastening, making it ideal for intricate assembly tasks.
- 1/4'' Hex Drive: The 1/4'' hex drive provides versatility and compatibility with a wide range of screwdriver bits, accommodating various fastening needs.
- Push-to-Start Convenience: The push-to-start feature simplifies operation, enabling users to initiate fastening with just a push of a button, enhancing efficiency and reducing fatigue.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
1/4'' Hex
Free Speed (RPM)
690 - 1000
Torque Range (in lb)
0.3 - 1.7
Torque Range (Nm)
0.03 - 0.2
Torque Range (kgf cm)
0.2 - 2
Technical Documents
HIOS CL Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL4000PSX-ESD?
What type of application is the CL4000PSX-ESD best suited for?
Electric Screwdrivers like the CL4000PSX-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL4000PSX-ESD?
The CL4000PSX-ESD can go up to 1000 rpm.
How do I set the torque on the CL4000PSX-ESD?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL4000PSX-ESD have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
