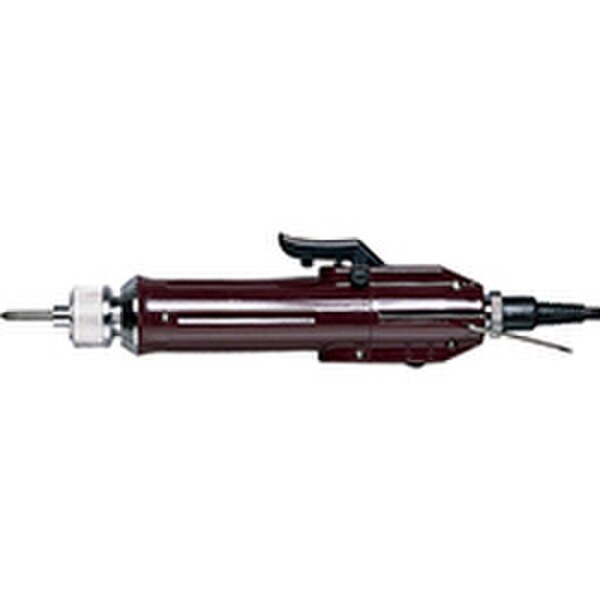

CL4000X | Electric Screwdriver, Lever Start, 0.3 - 1.7 in lbs, 1/4 in. Hex drive
Overview
Introducing the HIOS CL-4000X Electric Screwdriver, a remarkable assembly tool that combines precision, efficiency, and user-friendly design. Engineered by HIOS, this electric screwdriver empowers professionals in various industries with its exceptional performance and versatility.
- Min Torque(In Lb: 0.3
- Max Torque(In Lb: 1.7
- Drive Size: 1/4'' Hex
- Free Speed(RPM): 690 - 1000
- Start Type: Lever Start
- Manufacturer: HIOS
Features & Benefits
- Lever Start Mechanism: The CL-4000X features a convenient lever start mechanism, allowing for effortless operation and precise control during assembly processes.
- Versatile Torque Range: With a torque range from 0.3 to 1.7 in lbs, this electric screwdriver caters to a wide spectrum of fastening applications, ensuring optimal results for delicate tasks.
- Variable Speed Control: The CL-4000X provides variable speed control, enabling users to adjust the speed from 690 to 1000 RPM to suit different fastening requirements.
- 1/4'' Hex Drive: The 1/4'' hex drive offers compatibility with a broad range of screwdriver bits, enhancing its versatility and adaptability.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
1/4'' Hex
Free Speed (RPM)
690 - 1000
Torque Range (in lb)
0.3 - 1.7
Torque Range (Nm)
0.03 - 0.2
Torque Range (kgf cm)
0.2 - 2
Technical Documents
HIOS CL Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL4000X?
What type of application is the CL4000X best suited for?
Electric Screwdrivers like the CL4000X, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL4000X?
The CL4000X can go up to 1000 rpm.
How do I set the torque on the CL4000X?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL4000X have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
