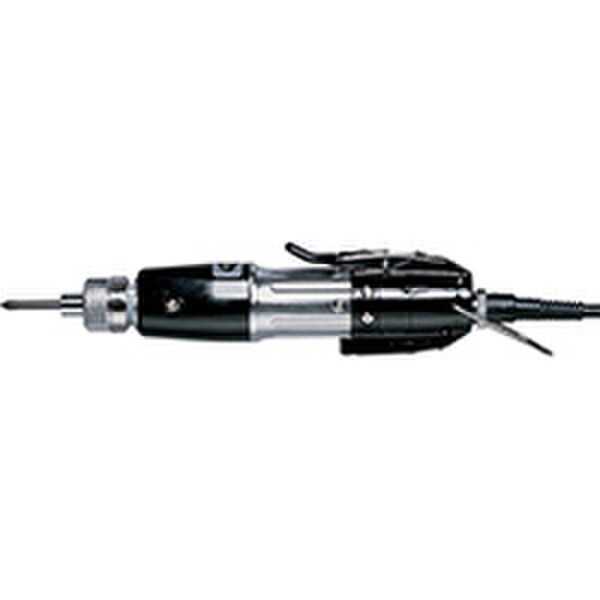

CL6000H5-ESD | Electric Screwdriver, Lever Start, 1.7 - 8.8 in lbs, H5 drive, ESD
Overview
Introducing the HIOS CL6000H5-ESD Electric Screwdriver, a cutting-edge assembly tool that combines precision, efficiency, and ESD-safe design. Engineered by HIOS, this electric screwdriver is the perfect choice for professionals seeking a reliable and versatile solution for their assembly needs.
- Min Torque(In Lb: 1.7)
- Max Torque(In Lb: 8.8)
- Drive Size: H5
- Free Speed(RPM): 500 - 800
- Start Type: Lever Start
- Manufacturer: HIOS
Features & Benefits
- ESD-Safe Construction: The CL6000H5-ESD features an ESD-safe construction, making it ideal for use in sensitive electronic assembly environments where static discharge can cause damage to components.
- Versatile Torque Range: With a torque range from 1.7 to 8.8 in lbs, this electric screwdriver adapts to a wide array of fastening applications, providing flexibility and accuracy.
- Lever Start Mechanism: The lever start mechanism ensures precise control and ease of use, minimizing operator fatigue during extended assembly tasks.
- H5 Drive Size: The H5 drive size is optimized for various fastening needs, offering a balance between power and precision.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
H5
Free Speed (RPM)
500 - 800
Torque Range (in lb)
1.7 - 8.8
Torque Range (Nm)
0.2 - 1
Torque Range (kgf cm)
2 - 10
Technical Documents
HIOS CL Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL6000H5-ESD?
What type of application is the CL6000H5-ESD best suited for?
Electric Screwdrivers like the CL6000H5-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL6000H5-ESD?
The CL6000H5-ESD can go up to 800 rpm.
How do I set the torque on the CL6000H5-ESD?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL6000H5-ESD have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
