CL6000PSX | Electric Screwdriver, Push-to-Start, 1.7 - 8.8 in lbs, 1/4 in. Hex drive
Overview

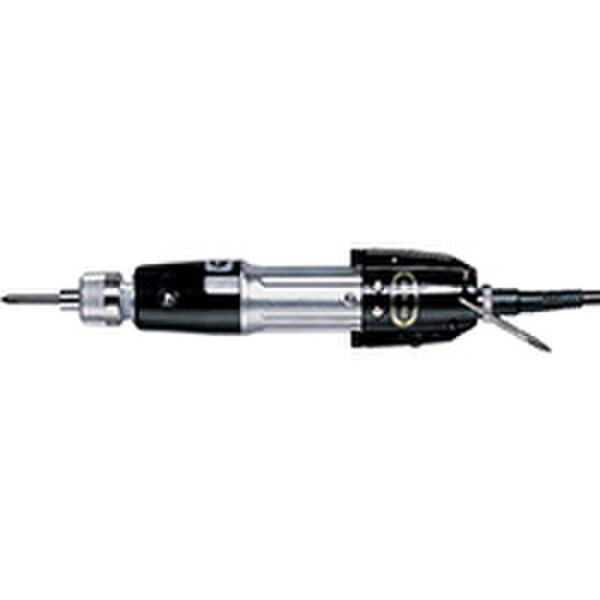

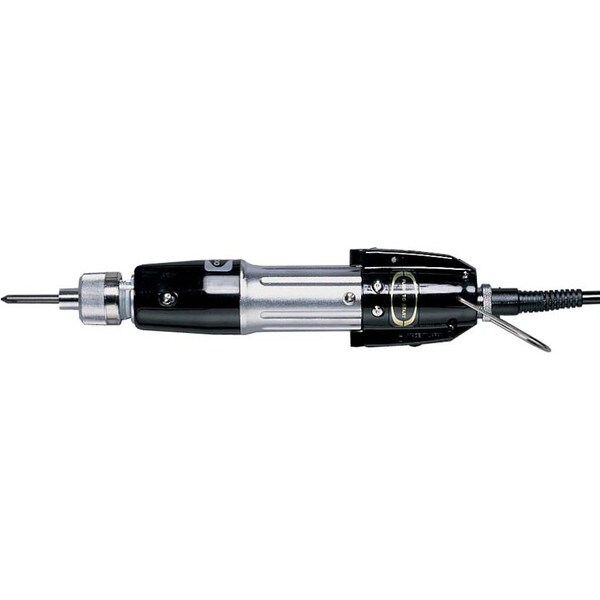

Introducing the HIOS CL-6000PSX Electric Screwdriver, a remarkable assembly tool that combines power, precision, and user-friendly features. Engineered by HIOS, this electric screwdriver is designed to streamline your assembly operations and elevate your fastening efficiency to new heights.
- Min Torque(In Lb: 1.7)
- Max Torque(In Lb: 8.8)
- Drive Size: 1/4'' hex
- Free Speed(RPM): 500 - 800
- Start Type: Push-to-Start
- Manufacturer: HIOS
Features & Benefits
- Push-to-Start Mechanism: The CL-6000PSX features a convenient push-to-start mechanism, enabling effortless operation and precise control during assembly processes.
- Versatile Torque Range: With a torque range from 1.7 to 8.8 in lbs, this electric screwdriver adapts to a wide variety of fastening applications, providing flexibility and accuracy.
- Variable Speed Control: The CL-6000PSX comes with variable speed control, allowing you to adjust the speed from 500 to 800 RPM to suit different fastening requirements.
- 1/4'' Hex Drive: The 1/4'' hex drive size offers compatibility with a broad range of screwdriver bits, making it a versatile tool for various assembly needs.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
1/4'' Hex
Free Speed (RPM)
500 - 800
Torque Range (in lb)
1.7 - 8.8
Torque Range (Nm)
0.2 - 1
Torque Range (kgf cm)
2 - 10
Technical Documents
HIOS CL Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL6000PSX?
What type of application is the CL6000PSX best suited for?
Electric Screwdrivers like the CL6000PSX, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL6000PSX?
The CL6000PSX can go up to 800 rpm.
How do I set the torque on the CL6000PSX?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL6000PSX have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
